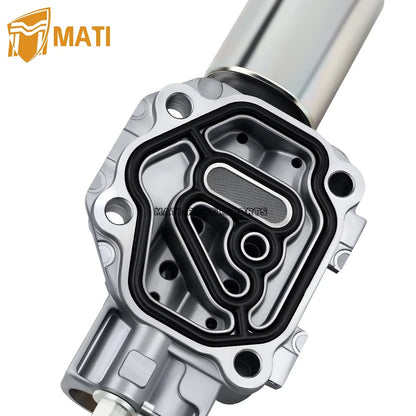

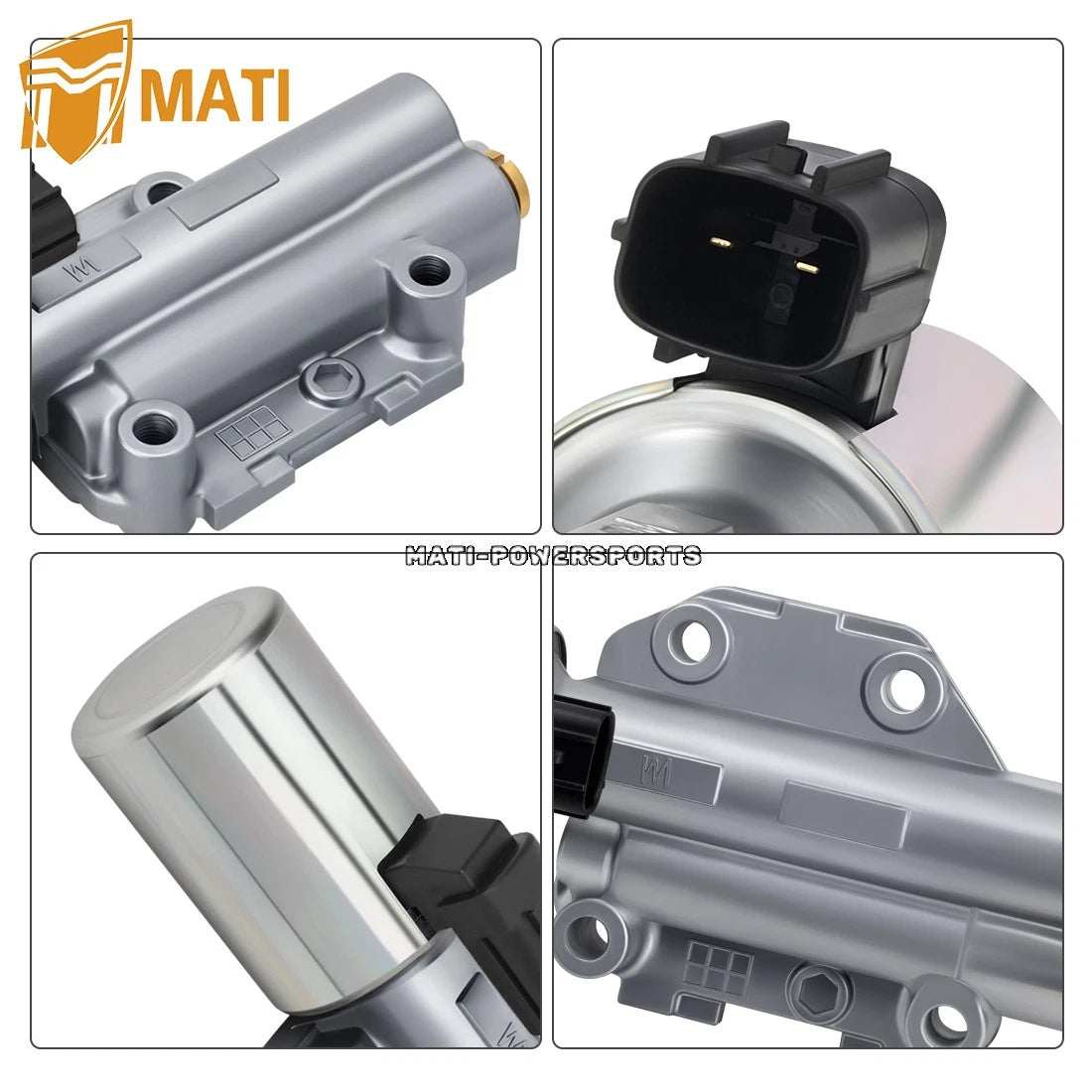

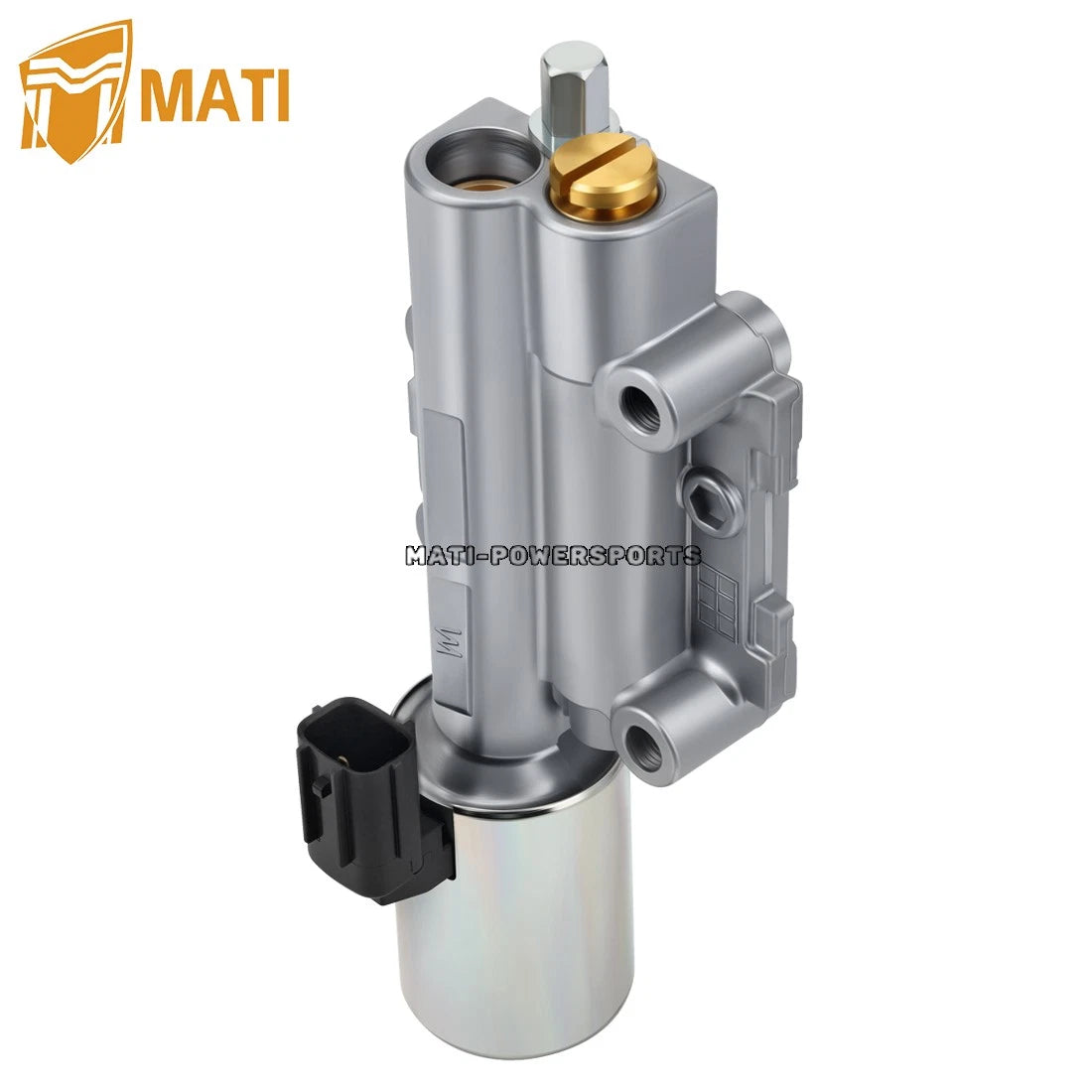

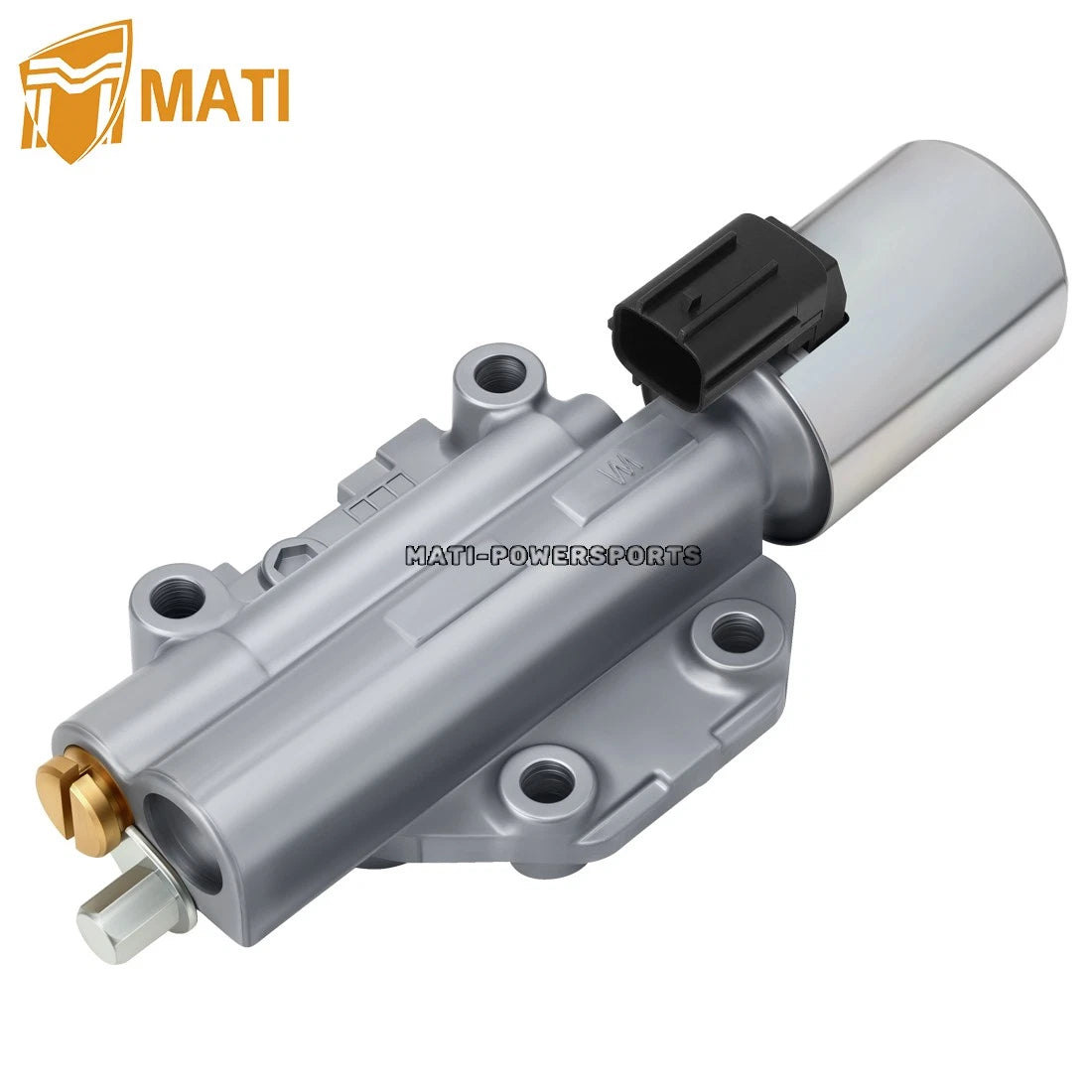

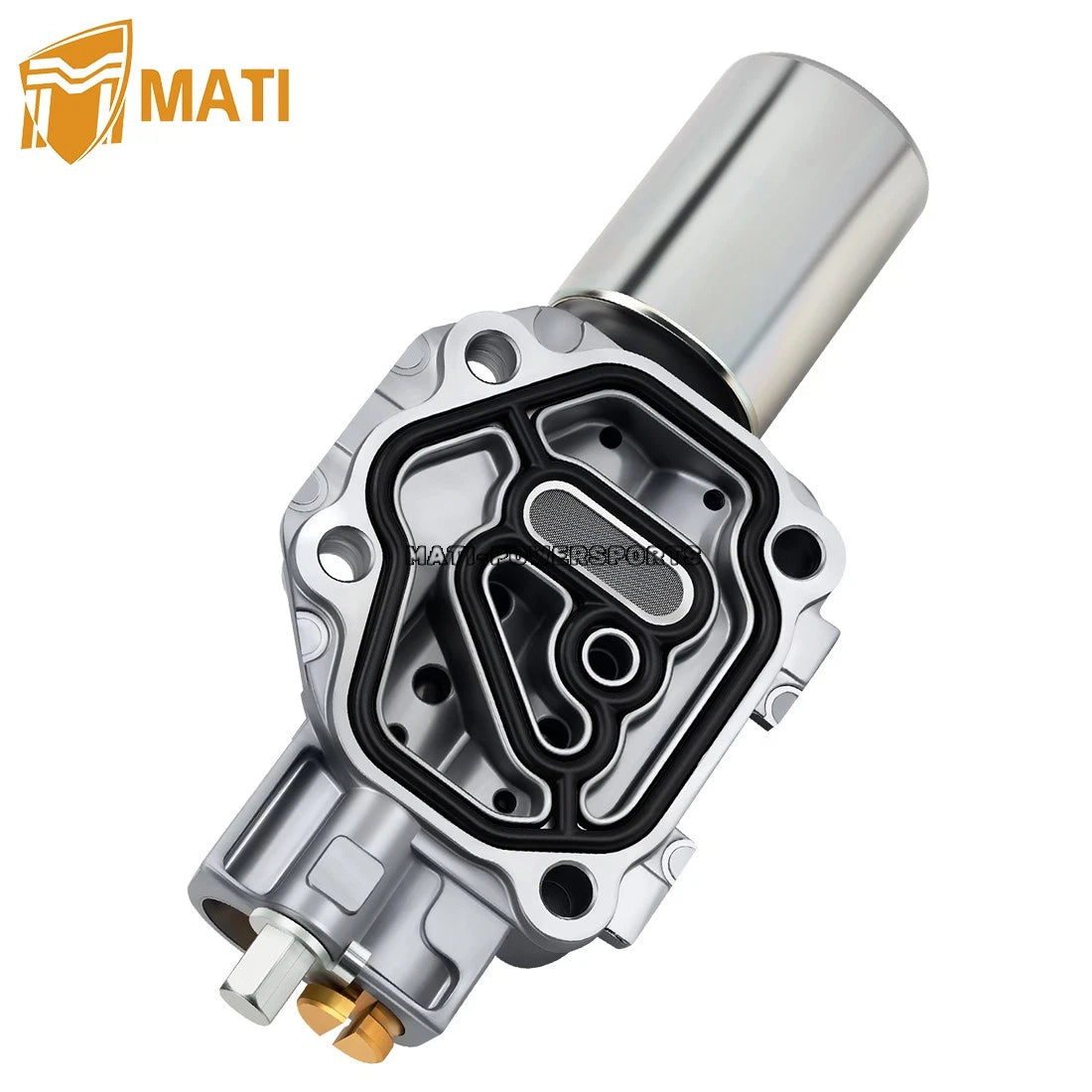

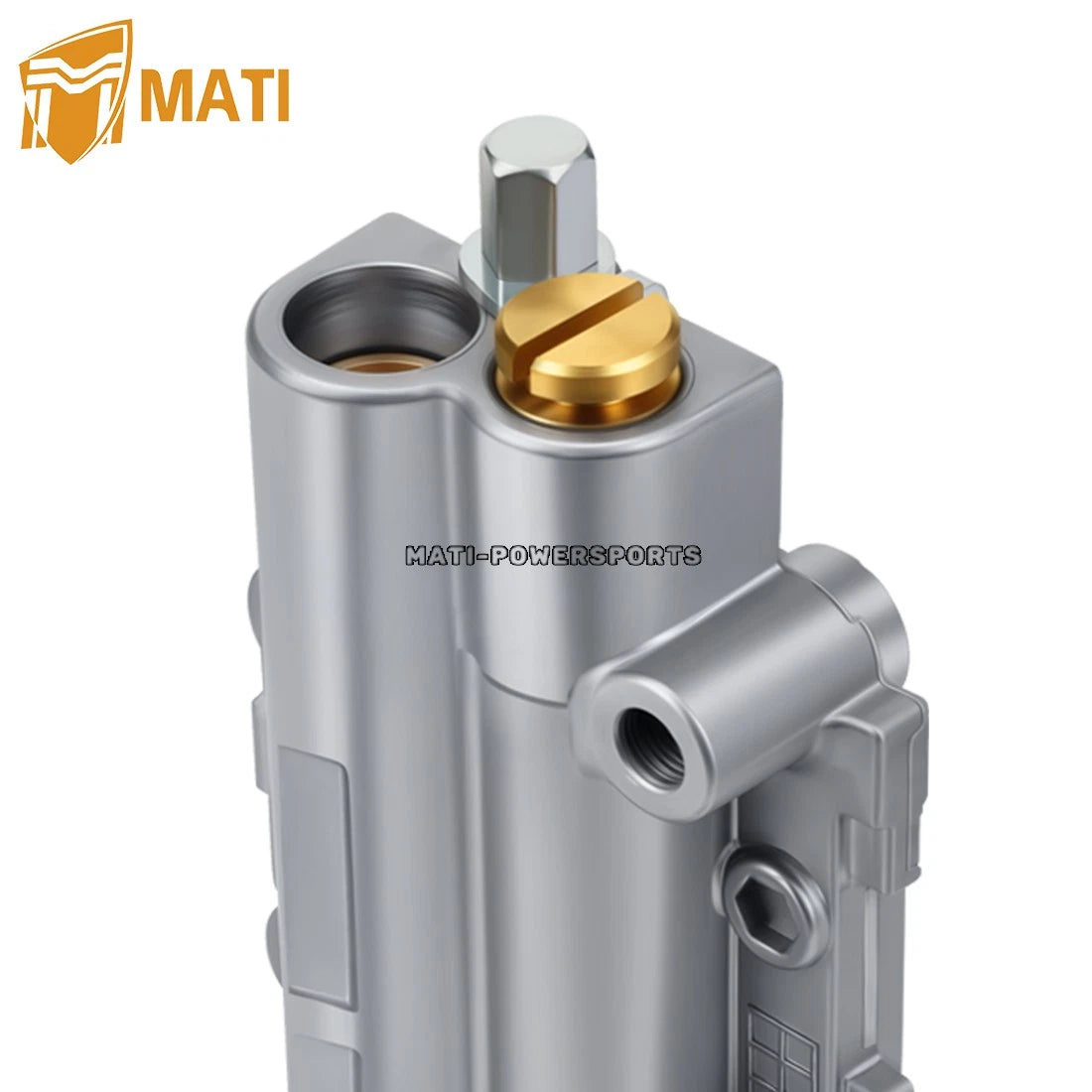

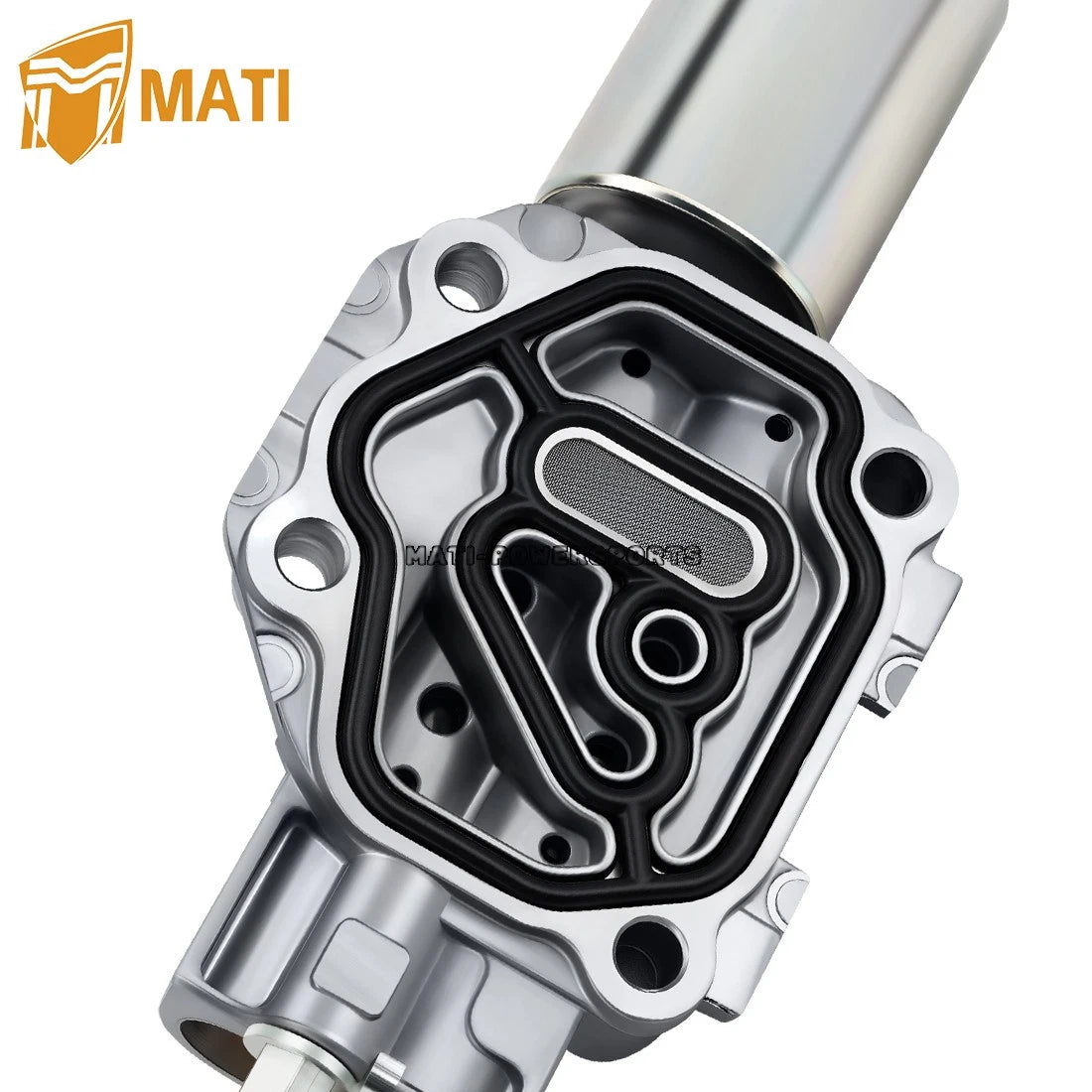

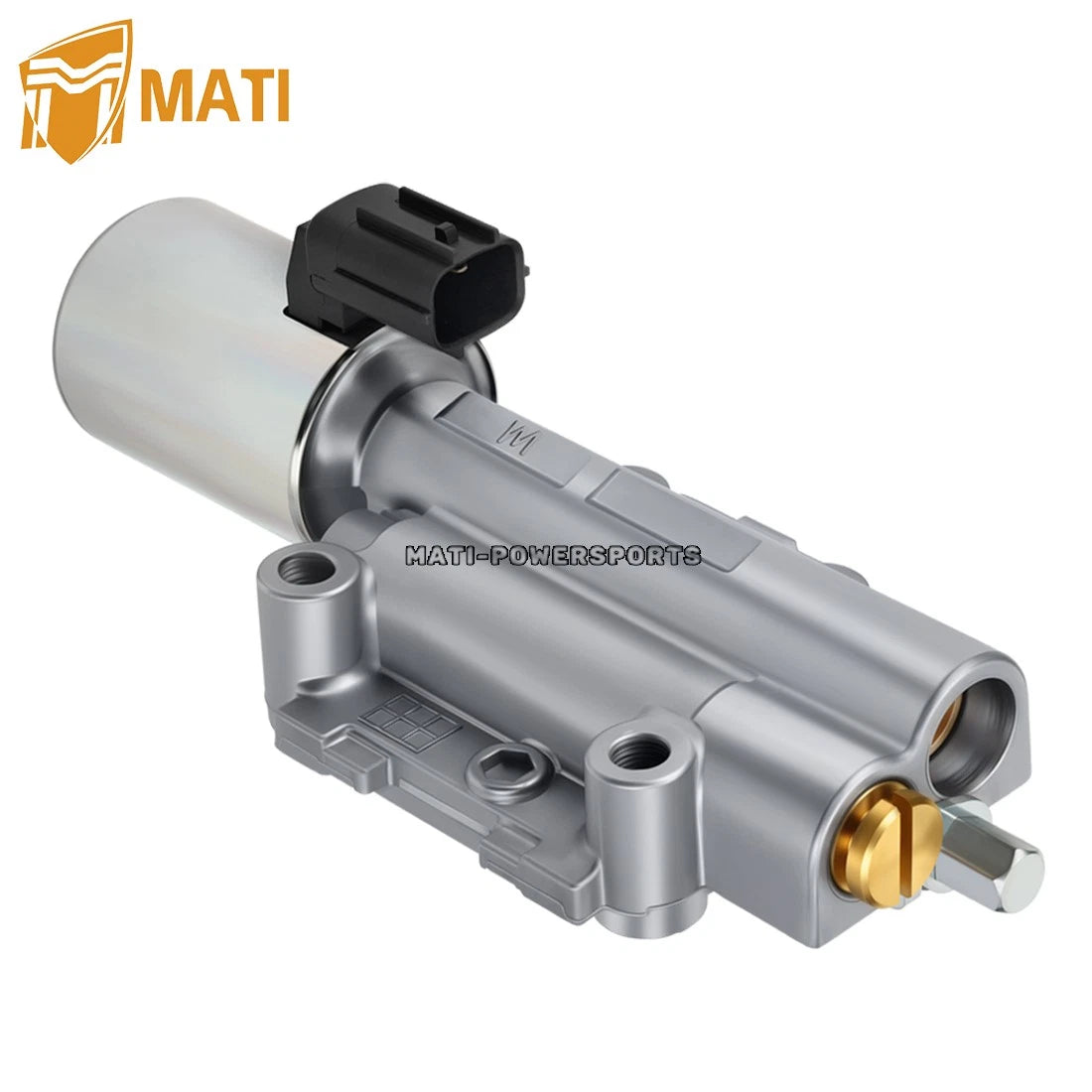

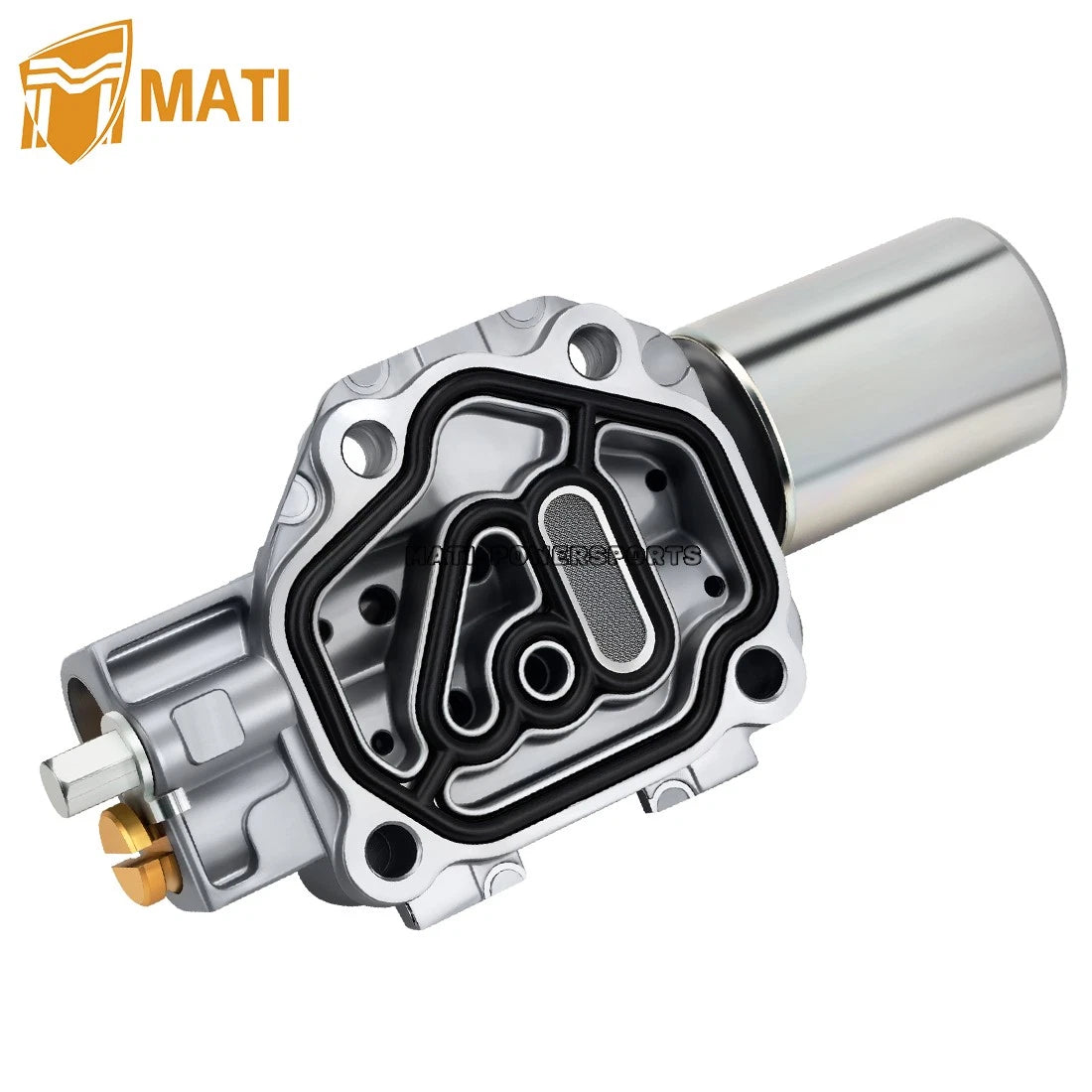

Transmission Solenoid Liner for Honda Rancher 420 TRX420FA Rubicon 520 TRX520FA DCT 2020-2024 Shift Control Valve Sleeve 38610-HR6-B01

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model: Honda

Placement on Vehicle：Main Valve Body

MPN :   38610-HR6-B01

Package :       Solenoid Liner x1

Warranty : 1 year

Condition:  New

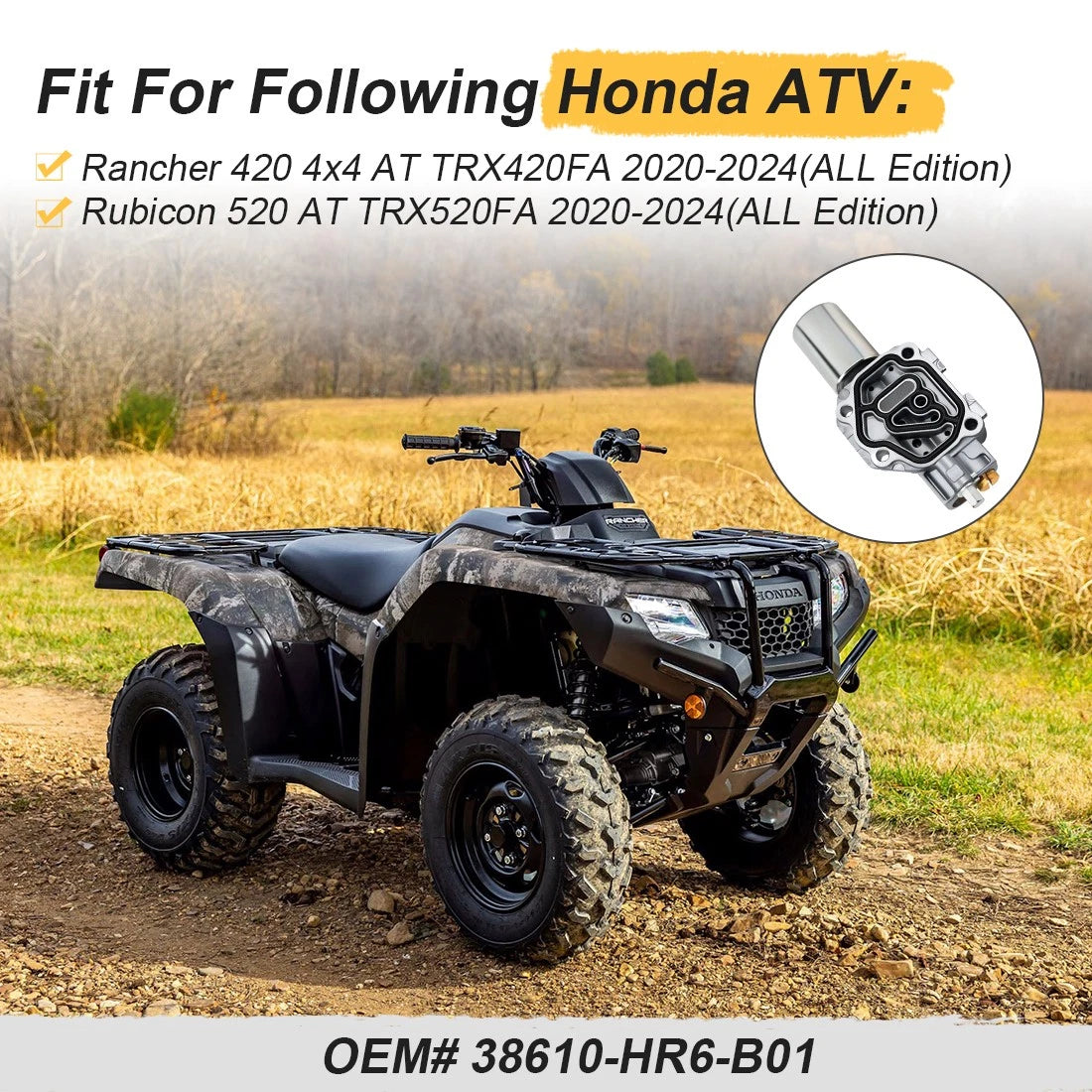

Fit for following Honda ATV/UTV

Rancher 420 4x4 AT TRX420FA 2020-2024(ALL Edition)
Rubicon 520 AT TRX520FA 2020-2024(ALL Edition)

🛠️ Installation Tips

• Absolute Cleanliness: The DCT (Dual Clutch Transmission) system is extremely sensitive to debris. Ensure the area around the solenoid is completely clean before removal to prevent any dirt from entering the valve body.

• Lubrication: Before sliding the new liner into place, apply a thin coat of fresh Honda GN4 oil (or the oil you use in your engine) to the outer surface and O-rings to ensure a smooth, tear-free installation.

• Alignment Check: Ensure the liner is fully seated and aligned with the solenoid pin. If it is slightly tilted, it may cause the shift solenoid to stick, leading to gear error codes.

• O-Ring Inspection: If your kit includes new O-rings, use them. If not, inspect your original ones for flattening or cracks. A leak here will cause a drop in hydraulic pressure, leading to "clunky" shifting.

• Reset the ECU: After installation, it is recommended to perform the DCT Initialization (Clutch Learn) procedure as outlined in your service manual to recalibrate the shifting points.

🔍 How to tell if your Solenoid Liner needs replacing?

The DCT (Dual Clutch Transmission) on Honda Rancher and Rubicon models relies on perfect hydraulic timing. If your solenoid liner is worn or scratched, you may experience:

• Shift Hesitation: The bike pauses or "hunts" for a second before successfully engaging the next gear.

• The "Clunk" Sound: You hear a loud mechanical clunk when shifting, especially from Neutral to 1st or from 1st to 2nd.

• Intermittent Gear Errors: Your gear indicator flashes a dash "-" or an error code, and the bike enters "Fail-safe" mode (stuck in one gear).

• Sticking when Hot: Shifting works fine when the engine is cold but starts acting up, skipping gears, or getting stuck once the engine reaches operating temperature.

• Visible Wear: Upon inspection, if you see scoring marks, dark streaks, or a "polished" lopsided wear pattern on the inside of the sleeve, the friction is likely binding the solenoid pin.
