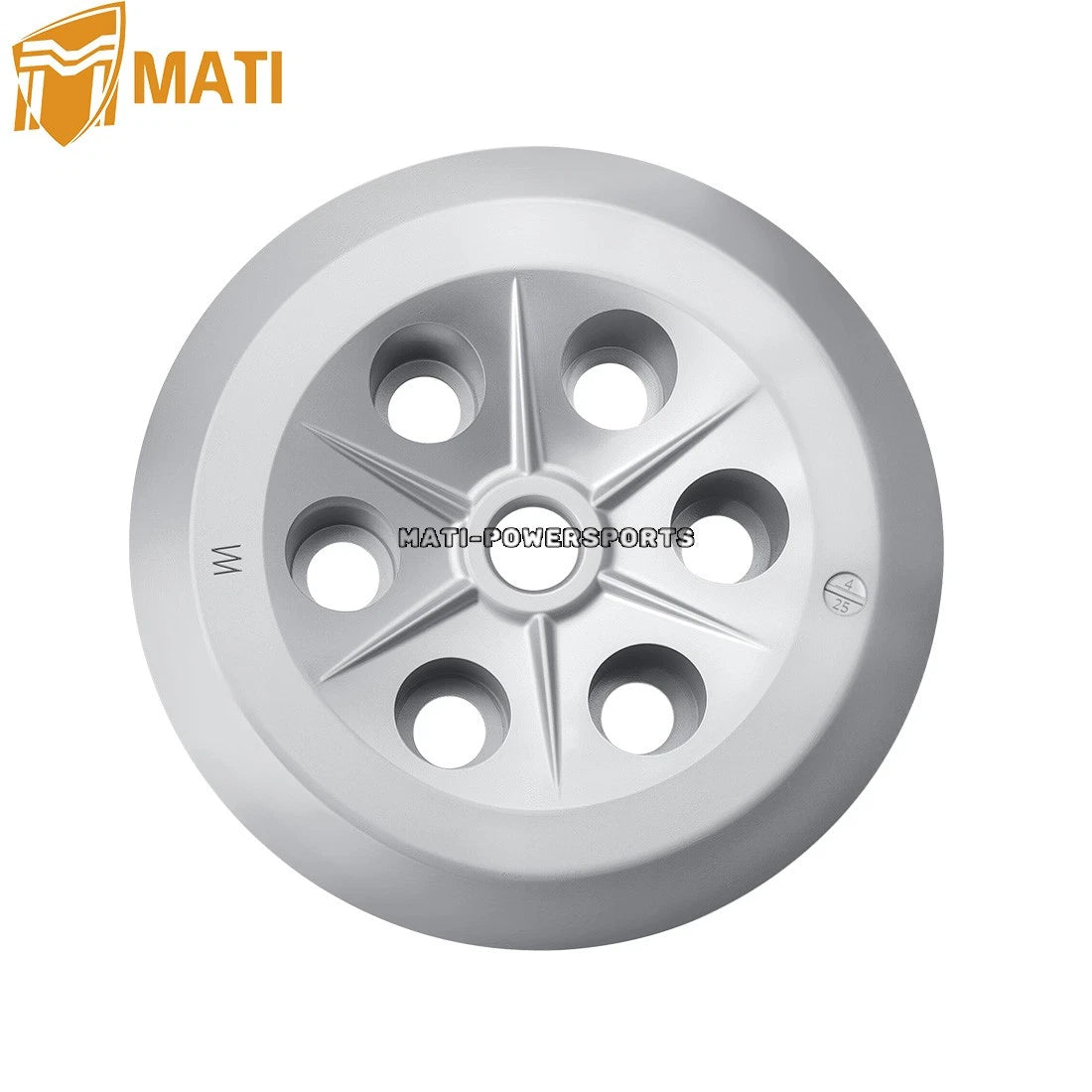

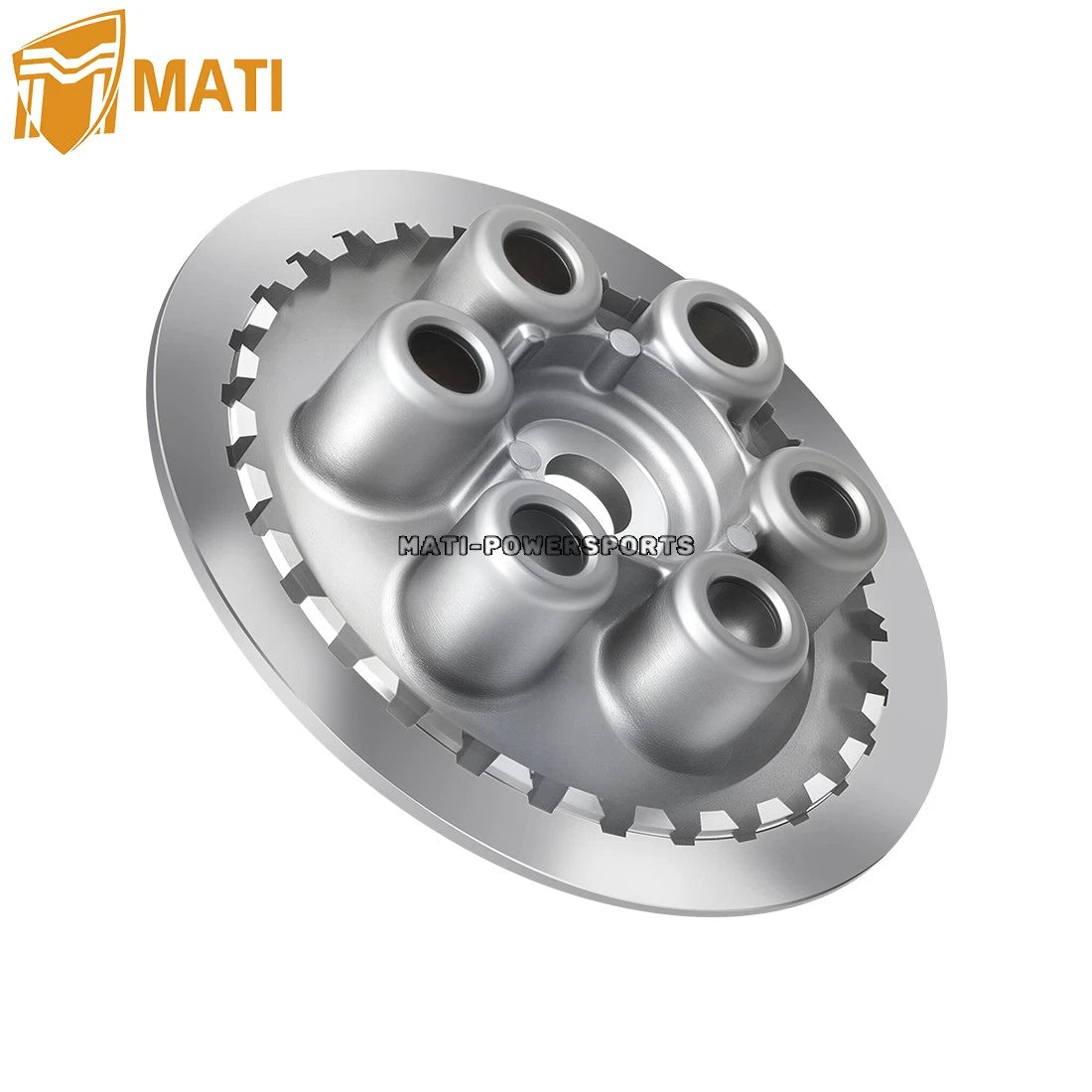

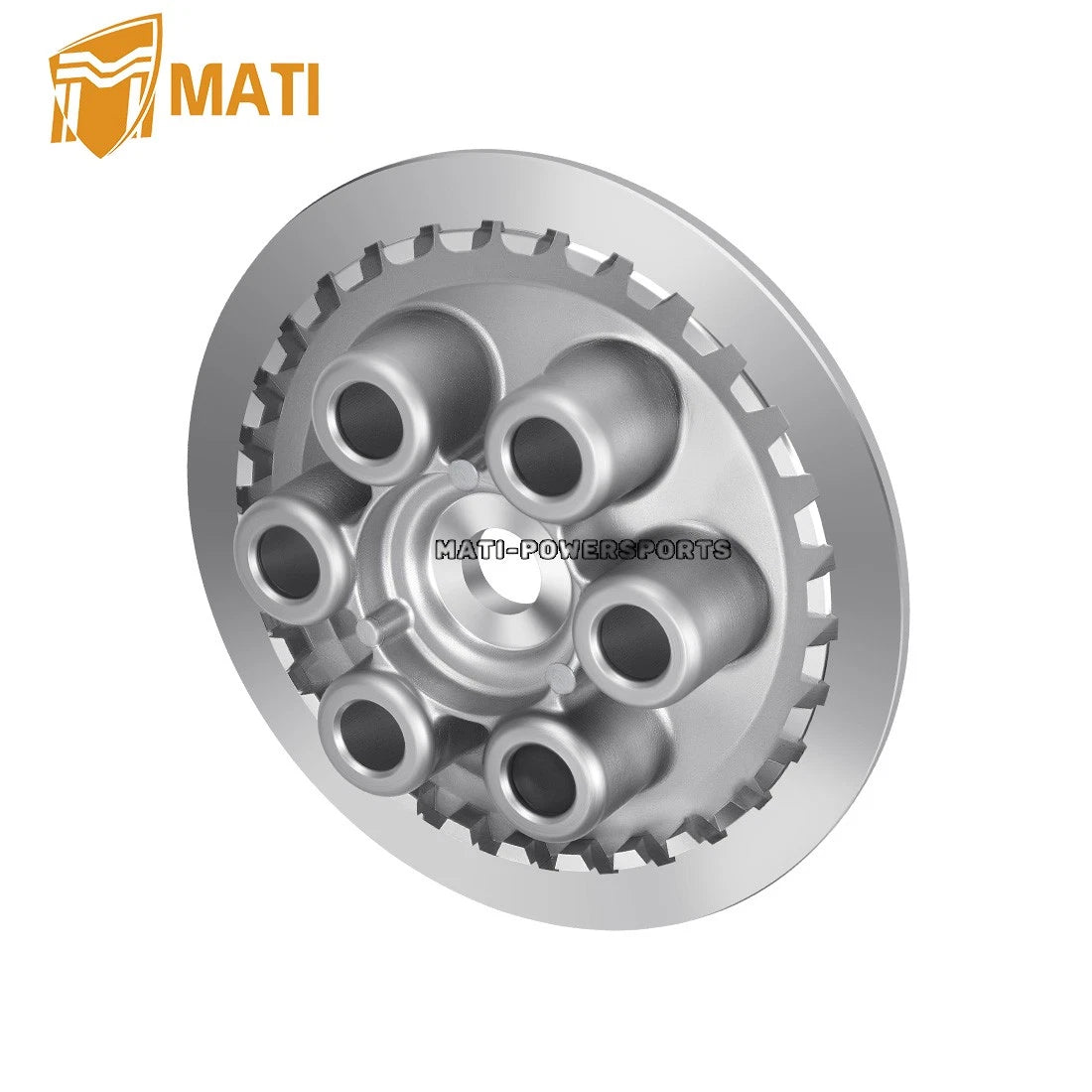

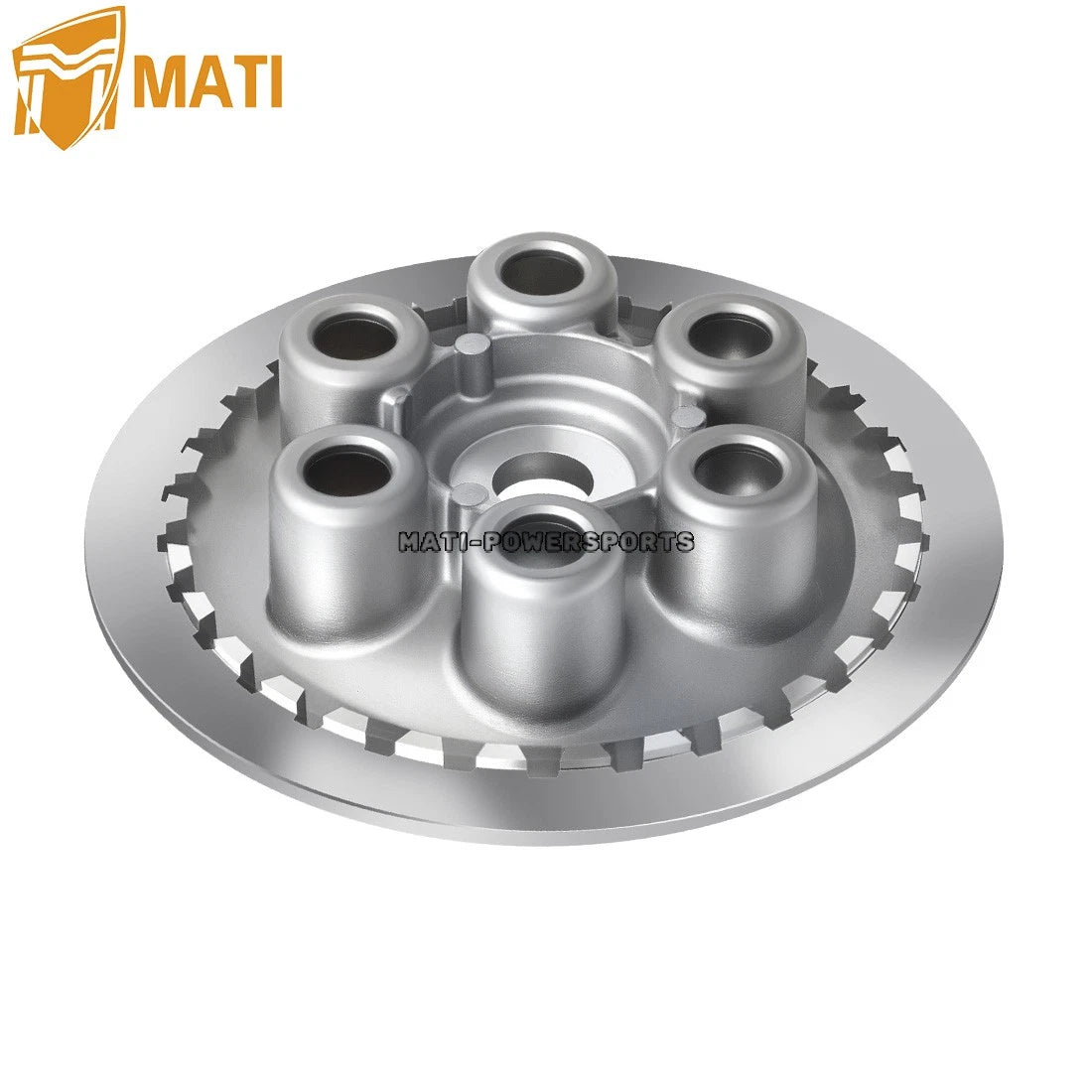

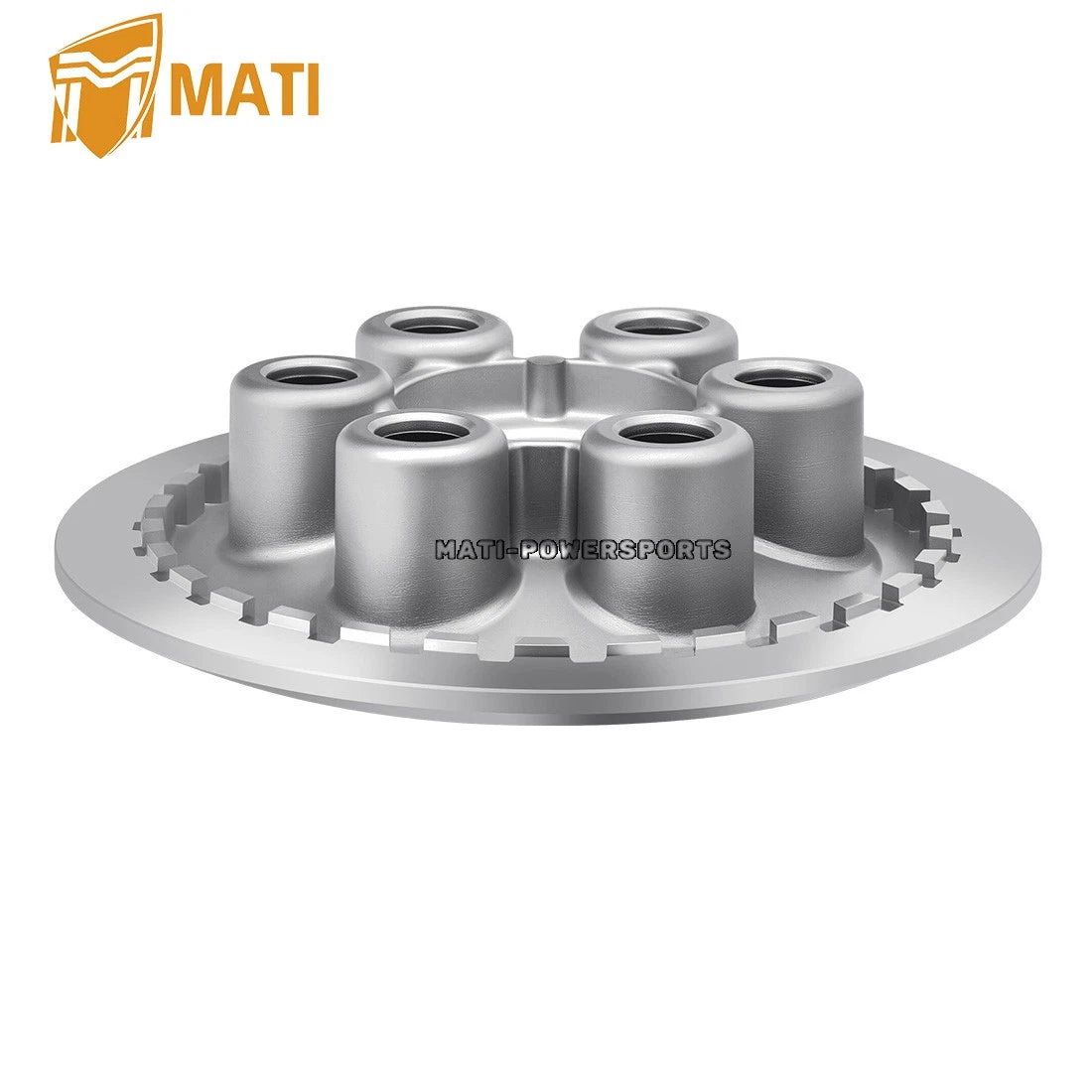

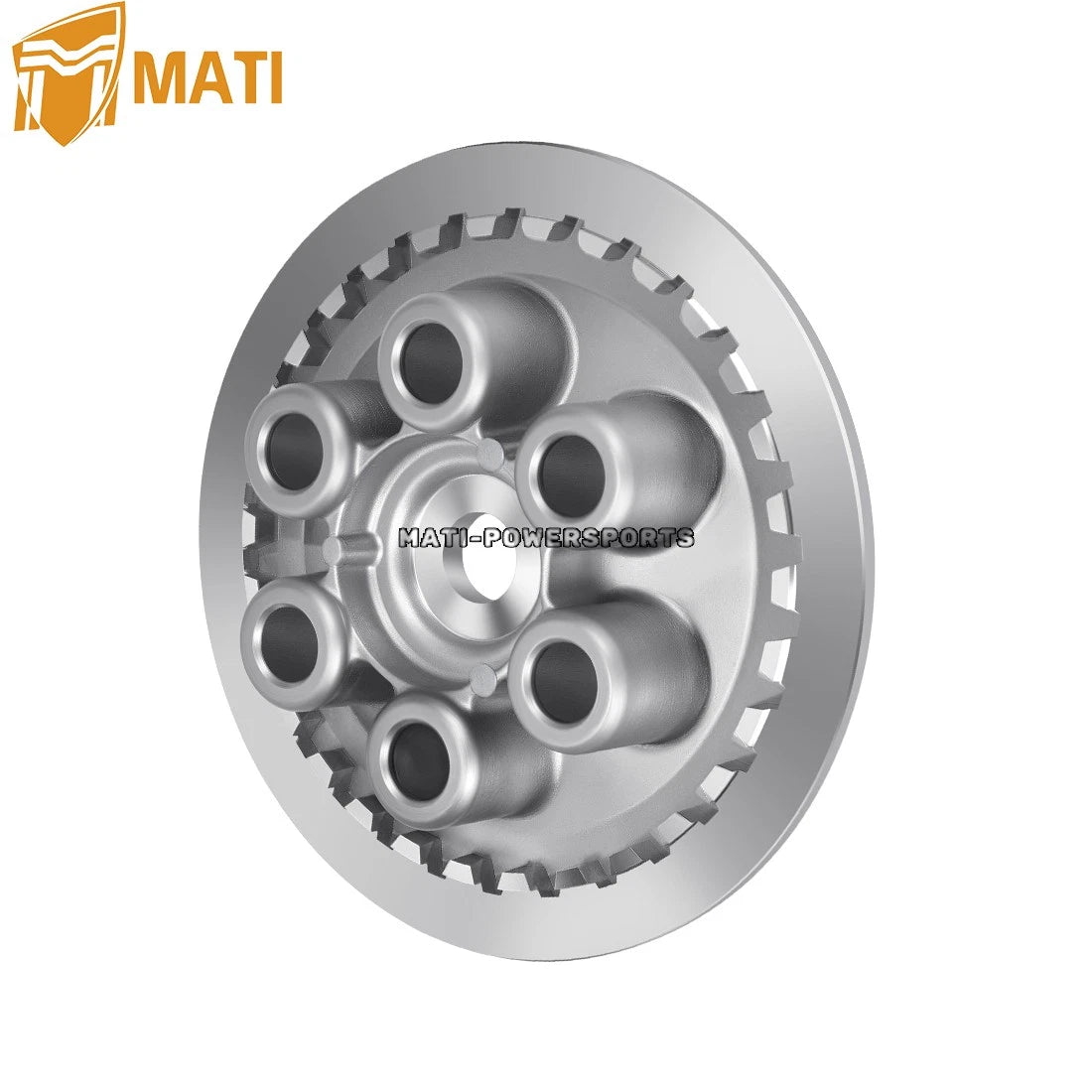

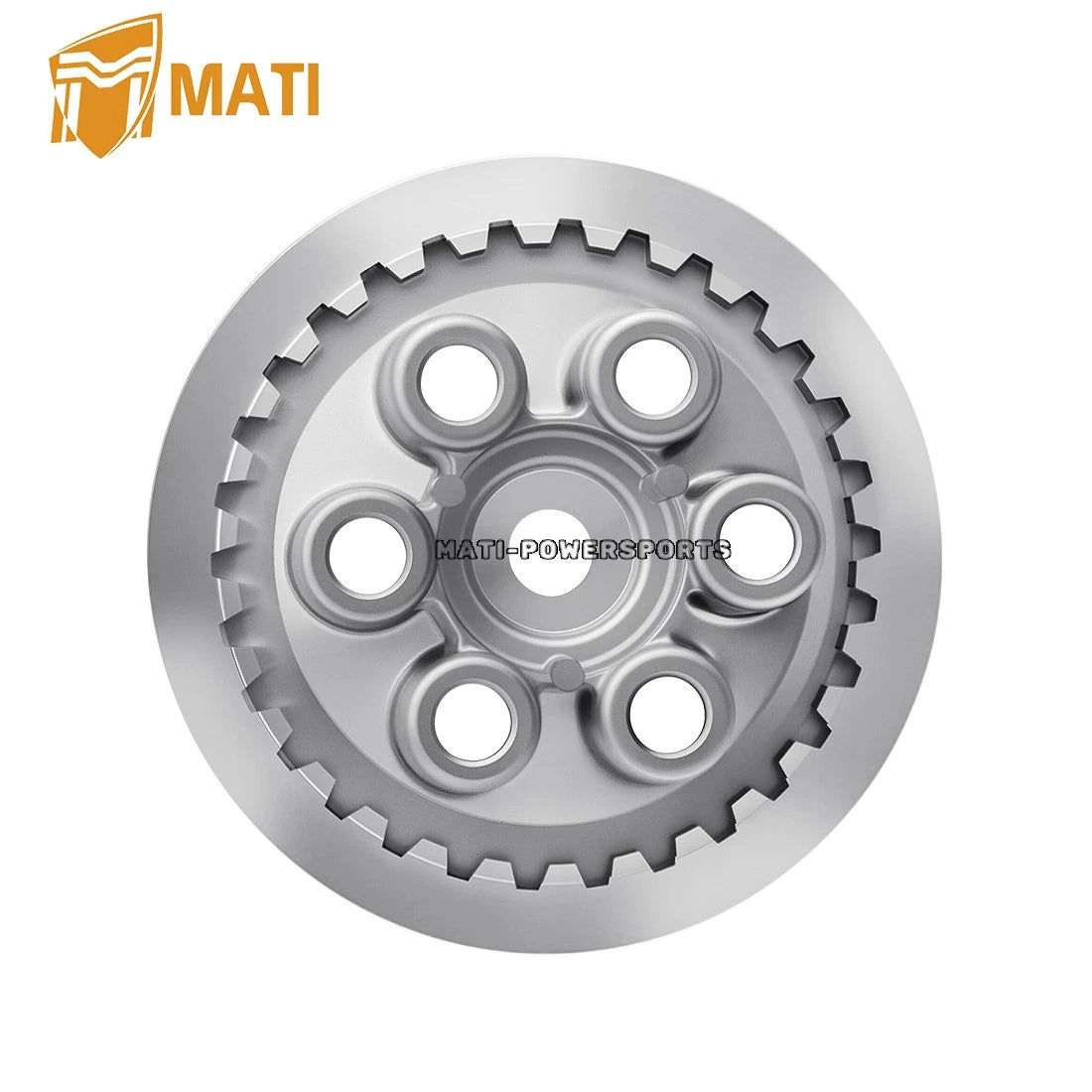

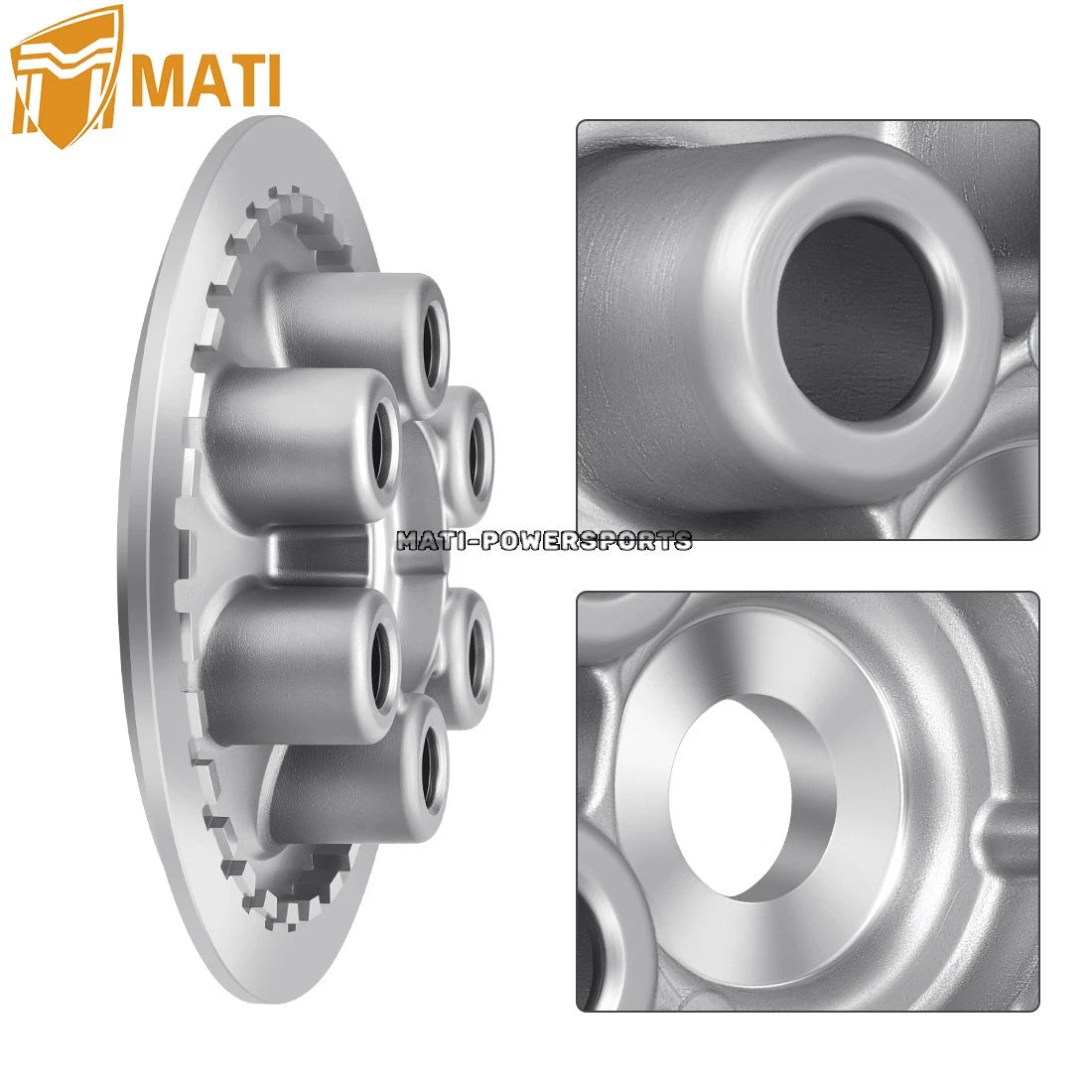

Clutch Pressure Plate for Suzuki GSX1300R Hayabusa 1999-2020 Engine Clutch Outer Pressure Disc Replaces 21462-24F00

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model:  Suzuki

Special Features: Clutch Pressure Plate

MPN：   21462-24F00

Package :  Clutch Pressure Plate x1

Warranty：1 Year

Placement on Vehicle :   Clutch

Fit for Suzuki Motorcycle

GSX1300R Hayabusa 1999-2020(ALL Edtion)

🛠️ Installation Tips

• Check for "Blueing": Before installing the new plate, inspect your old steel plates. If they have blue spots (heat damage), they are warped. Replacing the pressure plate without replacing warped steels will cause the new plate to wear unevenly and slip.

• The "Cross" Pattern: When tightening the clutch spring bolts against the new pressure plate, tighten them in a star or criss-cross pattern. Never tighten one bolt all the way down while the others are loose, as this can crack the aluminum pressure plate or snap a spring post.

• Soak Your Fibers: If you are installing new friction plates along with this pressure plate, soak the friction plates in fresh engine oil for at least 2 hours (preferably 24 hours). Installing them "dry" will burn the surface and ruin the new pressure plate on the first ride.

• Torque Sequence: Use a torque wrench. The clutch spring bolts on a Hayabusa usually require approximately $10\text{--}12 \text{ N}\cdot\text{m}$ ($7\text{--}9 \text{ lb-ft}$). Over-tightening is the most common cause of snapped clutch basket pillars.

• Bearing Inspection: While the pressure plate is off, inspect the clutch release bearing (throw-out bearing) in the center. If it feels "notchy" or dry, replace it now to avoid having to pull the clutch cover off again later.

🔍 Troubleshooting Guide
