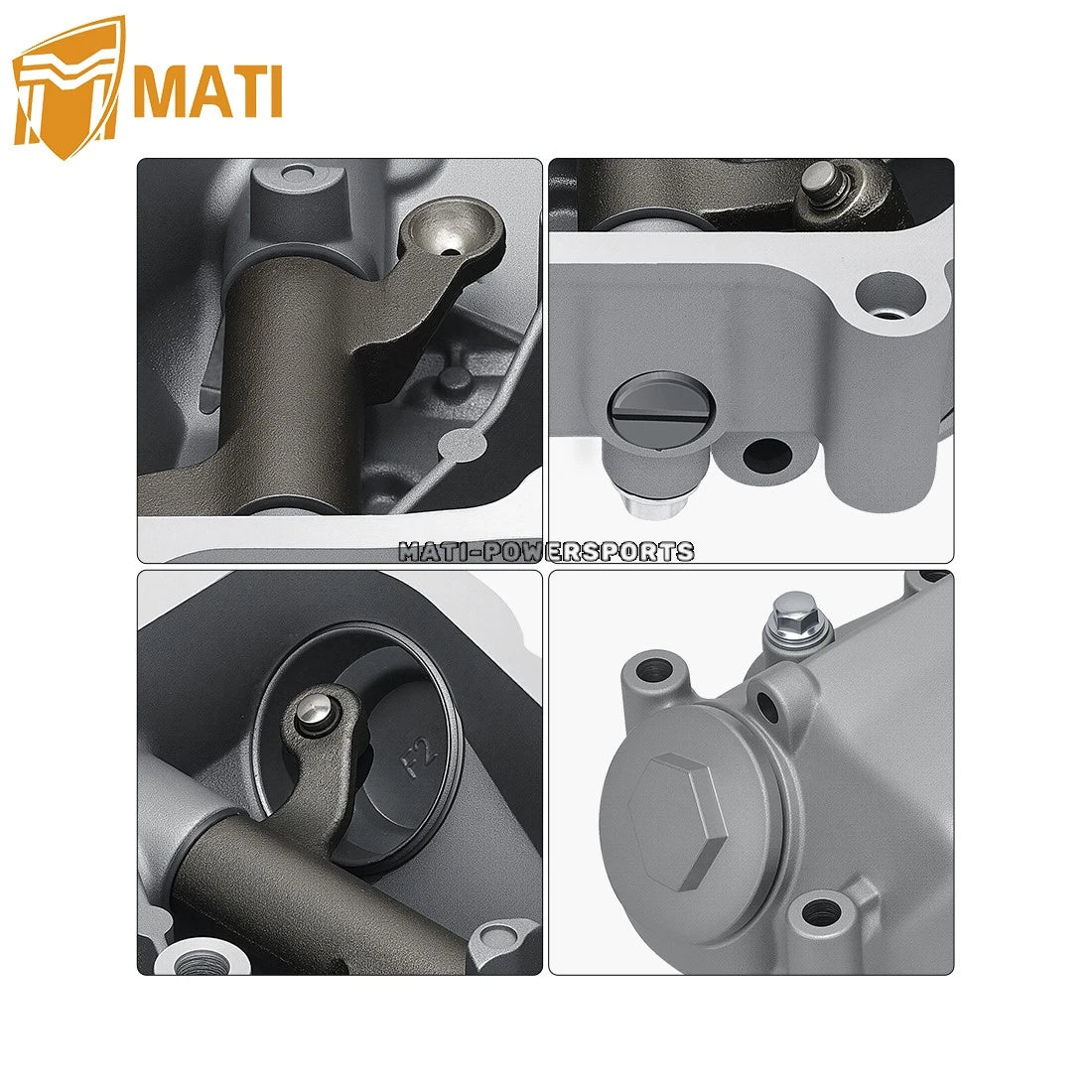

Cylinder Head Cover & Gasket Set for Honda Rancher 420 TRX420 2009-2024 12310-HP5-L10 1

Cylinder Head Cover & Gasket Set for Honda Rancher 420 TRX420 2009-2024 12310-HP5-L10 1

$86.40
$98.10 $86.40
Sale Sold out
Shipping calculated at checkout.
paypal visa master discover american_express

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model: Honda

Special Features: Cylinder Head Cover & Gasket Kit

MPN :

12310-HP5-L10 12310-HP5-600    12191-HP5-601

12315-HR0-F01   12315-HP5-601   12251-HP7-A01

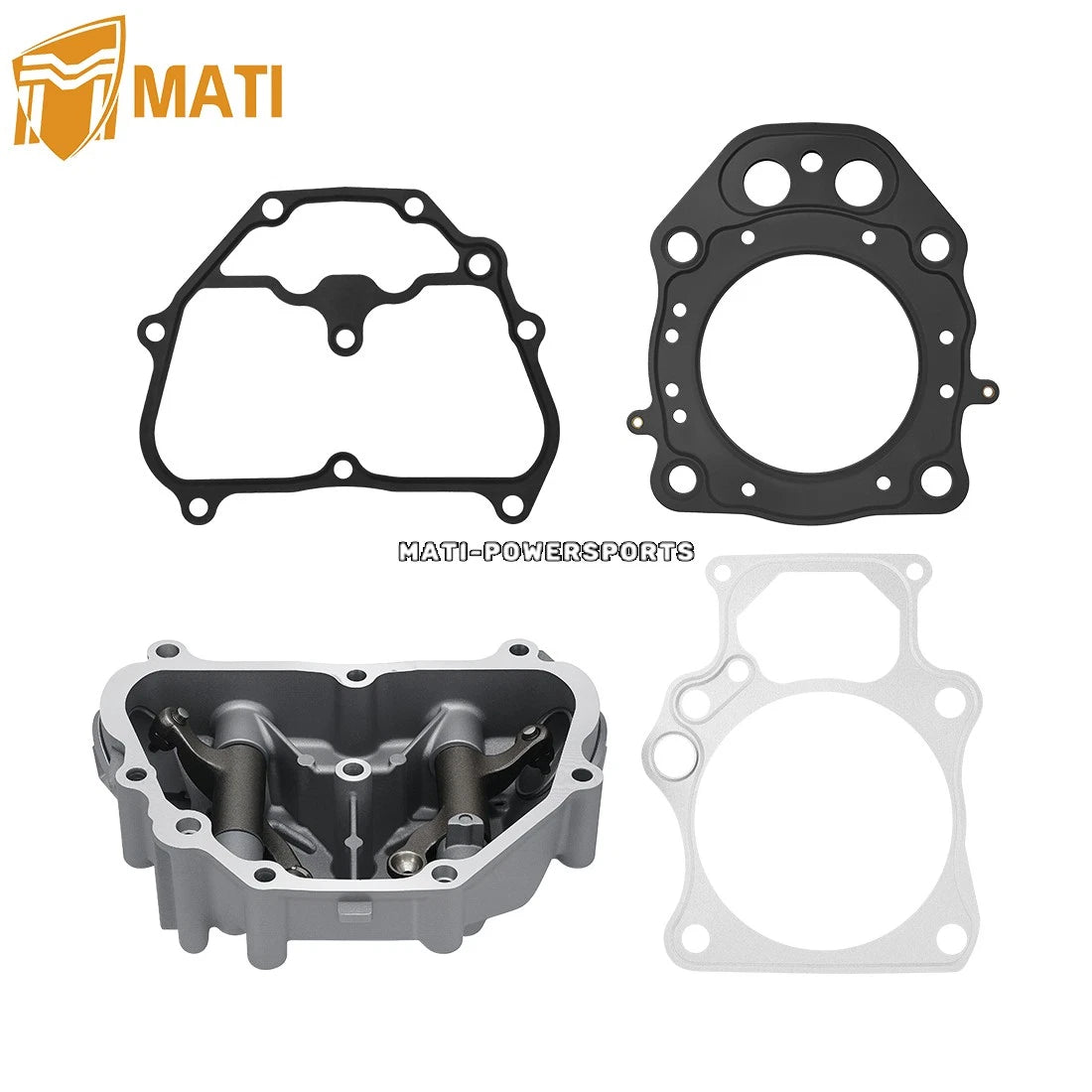

Package :

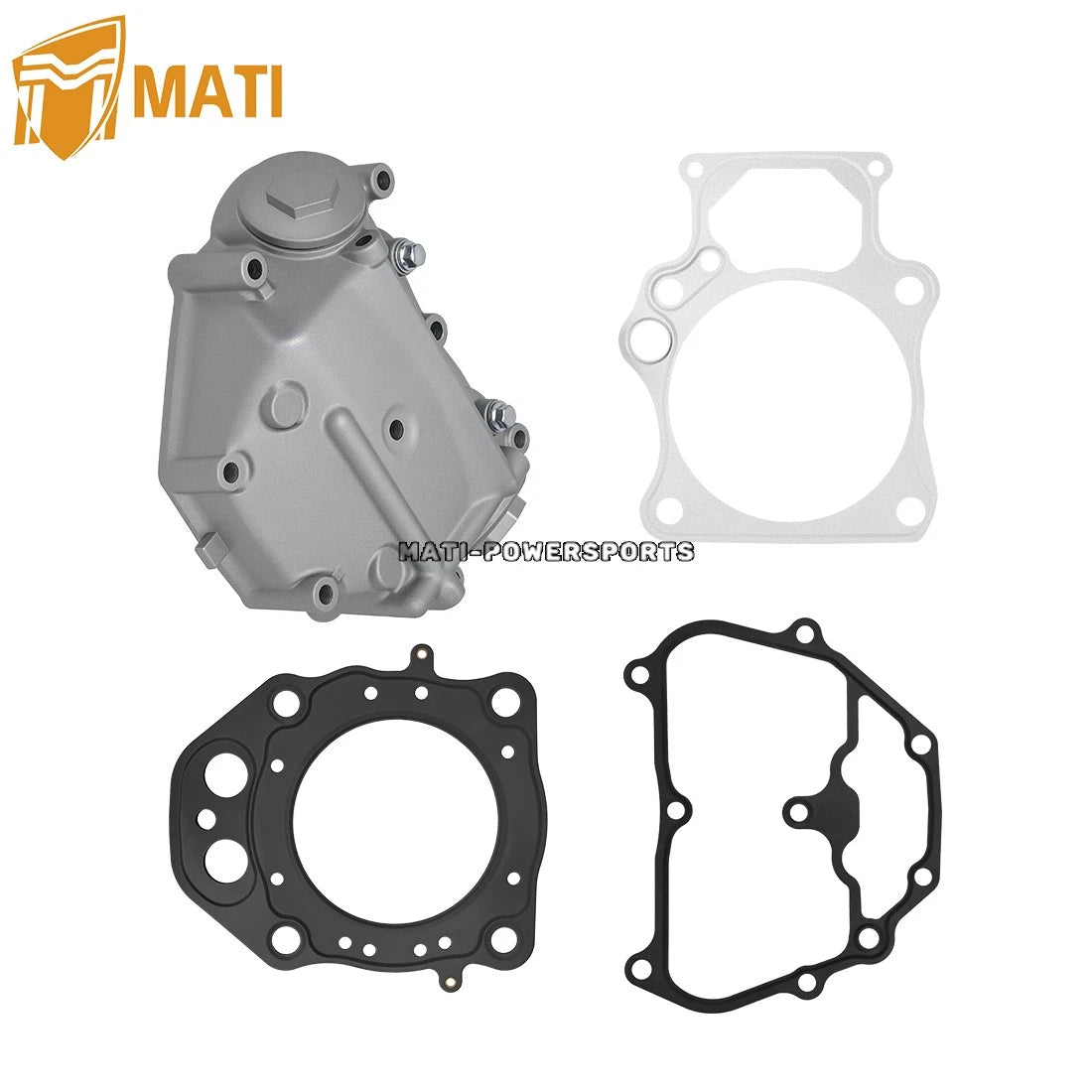

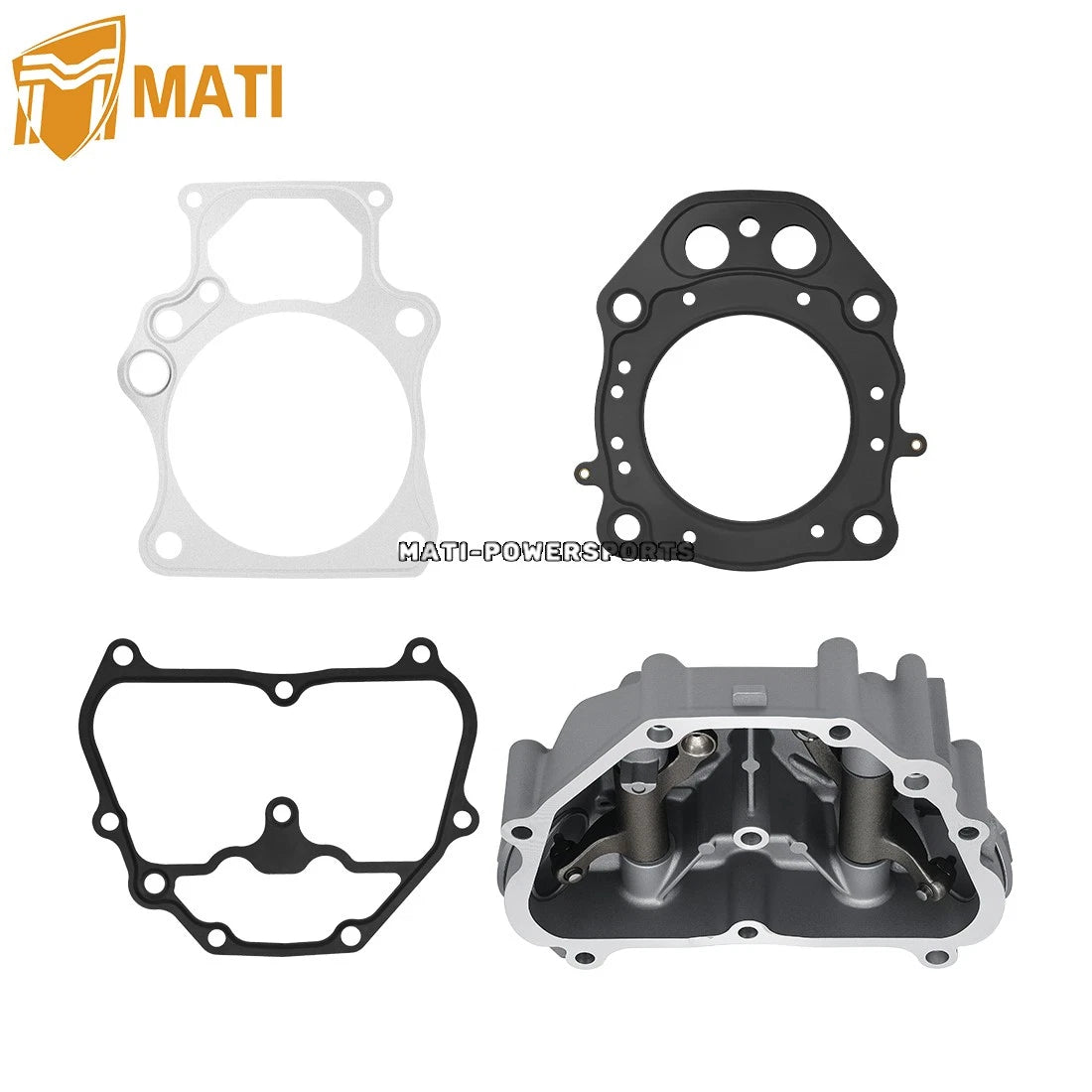

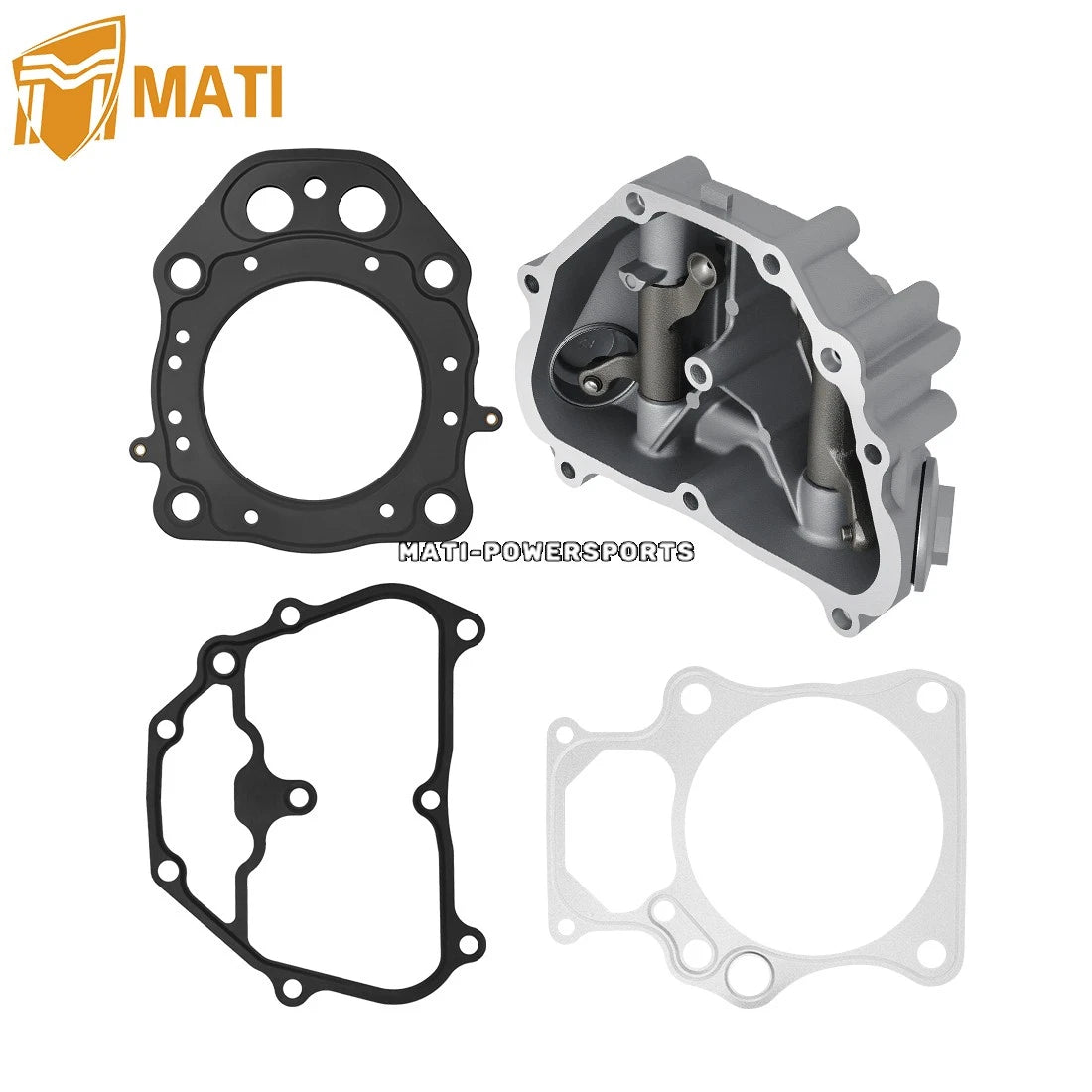

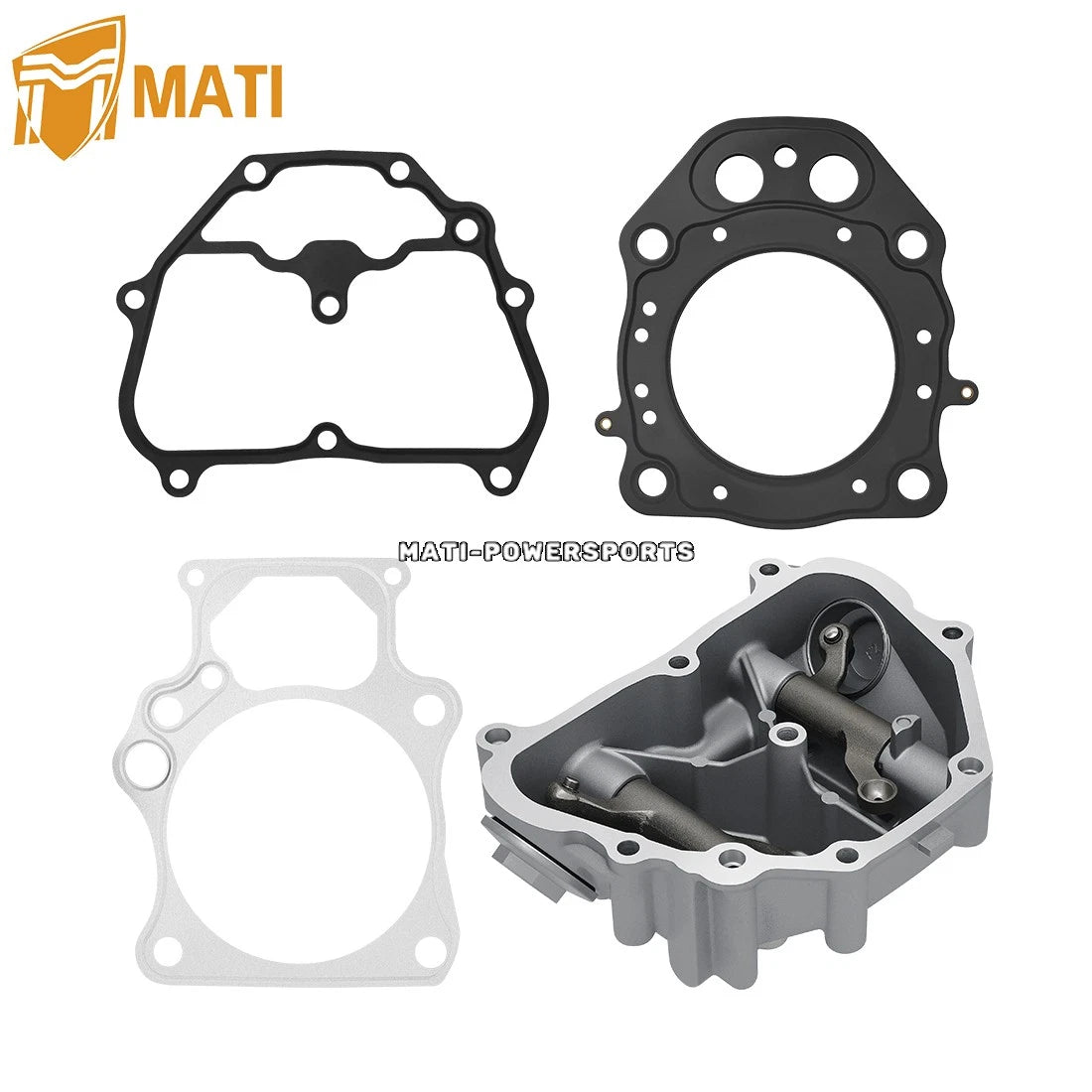

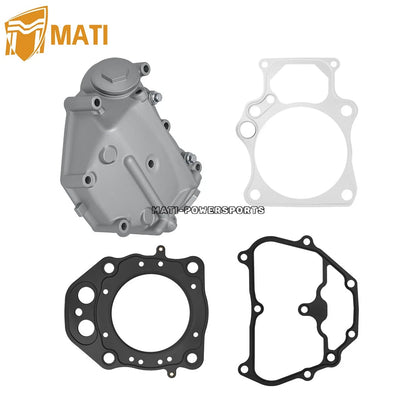

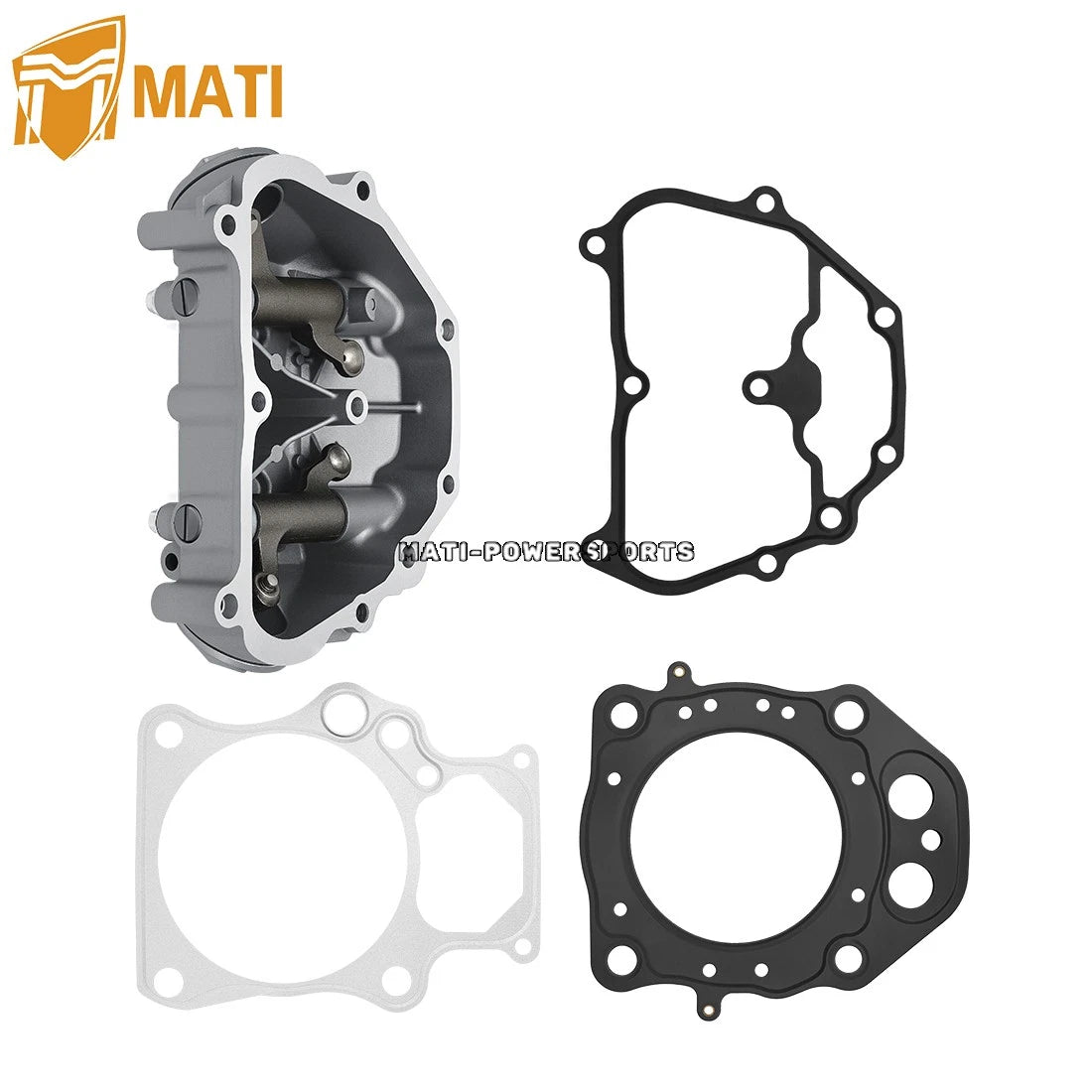

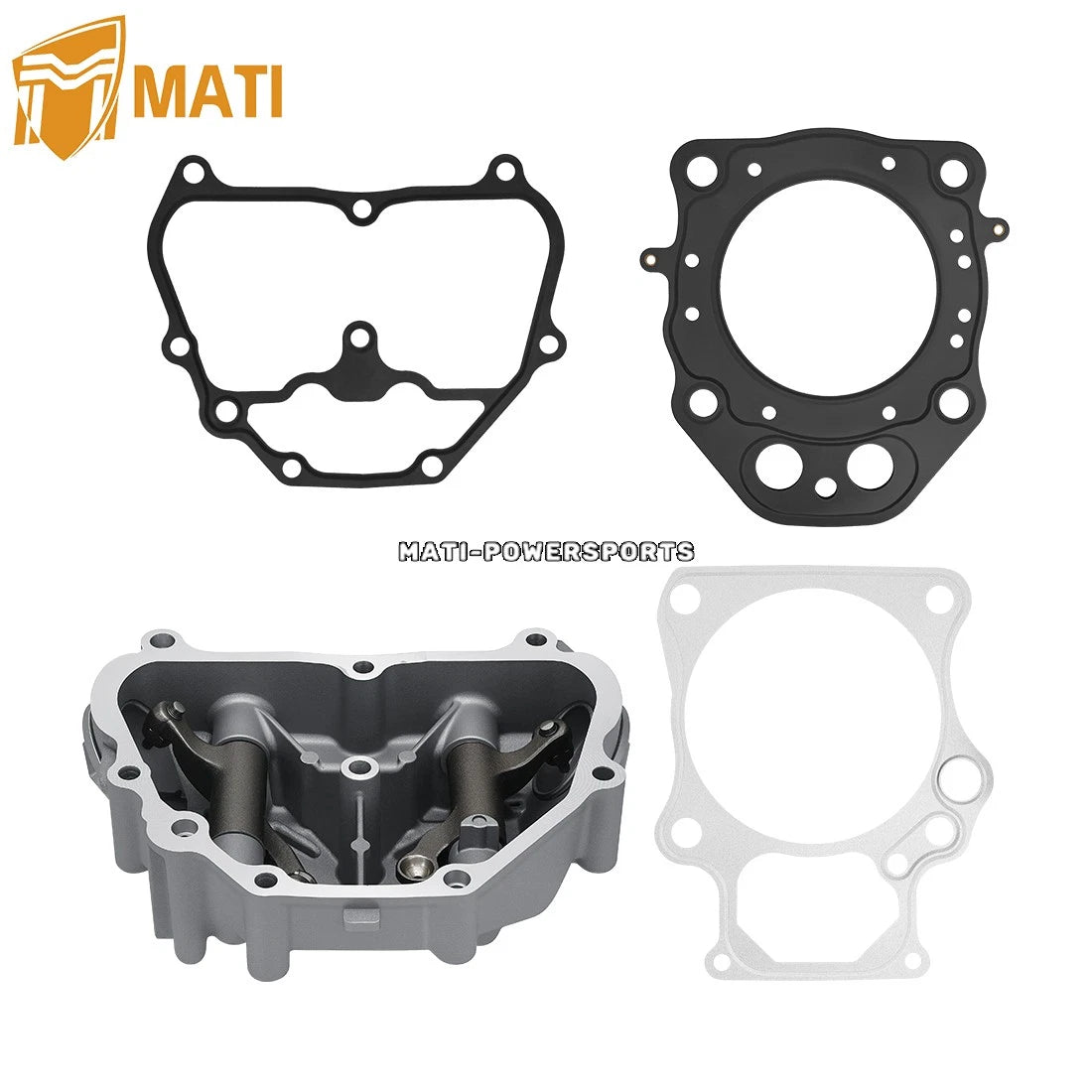

Cylinder Head Cover x1        Cylinder Base Gasekt x1
Cylinder Top Gasket x1          Cylinder Head Gasket x1

Placement on Vehicle :     Cylinder

Warranty : 1 year

Condition :  NEW

Fit for following Honda ATV

Rancher 420 4X4 TRX420FA/FM/FE/ 2009-2024 (All Edition)
Rancher 420 4X4 TRX420FPE/FPM 2009-2013 (All Edition)
Rancher 420 4X4 TRX420FPA 2009-2014 (All Edition)
Rancher 420 2x4 TRX420TE/TM 2009-2024 (All Edition)

🛠️ Installation Tips

  • Surface Preparation: Before installing the new cover, use a lint-free cloth and brake cleaner to ensure the mating surface on the cylinder head is completely dry and oil-free.

  • Seating the Gasket: Press the new gasket into the groove of the cover carefully. Ensure it is not twisted or pinched. For added security, you can use a few small dabs of high-temp RTV silicone at the "half-moon" corners to prevent leaks.

  • Valve Clearance Check: Since the cover is off, this is the perfect time to adjust your valve lash. The Rancher 420 requires specific intake and exhaust clearances for optimal starting and power.

  • Criss-Cross Torque: Tighten the mounting bolts in a diagonal/criss-cross pattern. Do not over-torque; the aluminum threads in the cylinder head are easily stripped. Use a torque wrench to meet factory specifications.

  • Spark Plug Hole Seal: Ensure the spark plug tube seal (if applicable) is correctly positioned. A failed seal here will fill your spark plug well with oil, causing misfires.

🔍 Troubleshooting Guide

Issue  Possible Cause  Solution
Oil Dripping onto Exhaust Brittle or flattened cover gasket. Heat cycles flatten the rubber gasket over time. Replace the cover and gasket to stop the burning oil smell and smoke.
Tapping/Clacking Noise Loose valve rockers or warped cover. While replacing the cover, re-adjust the valve clearance. A warped cover can also vibrate against the internal components.
Misfiring/Engine Bogging Oil in the spark plug well. If the internal seals of the head cover fail, oil can leak into the spark plug area, shorting out the ignition. New seals resolve this.
Dirt/Mud in Top End Cracked head cover from impact. Off-road debris can sometimes crack the aluminum cover. Replace immediately to prevent grit from entering your engine's oil system.
Recurring Leak after Install Uneven bolt pressure or oily surface. Ensure the bolts are torqued in stages. If you reuse old bolts, check for stretched threads that won't hold tension.
