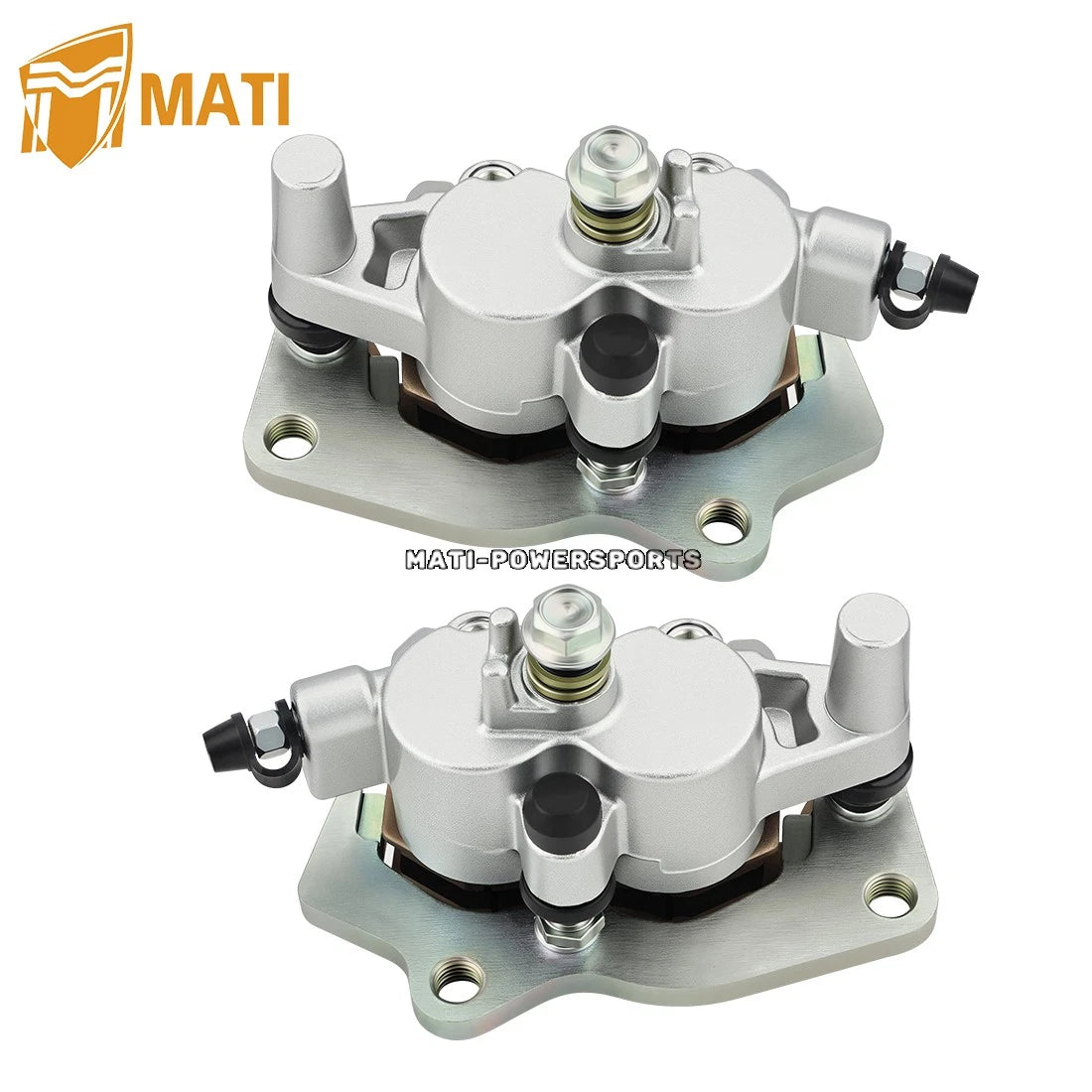

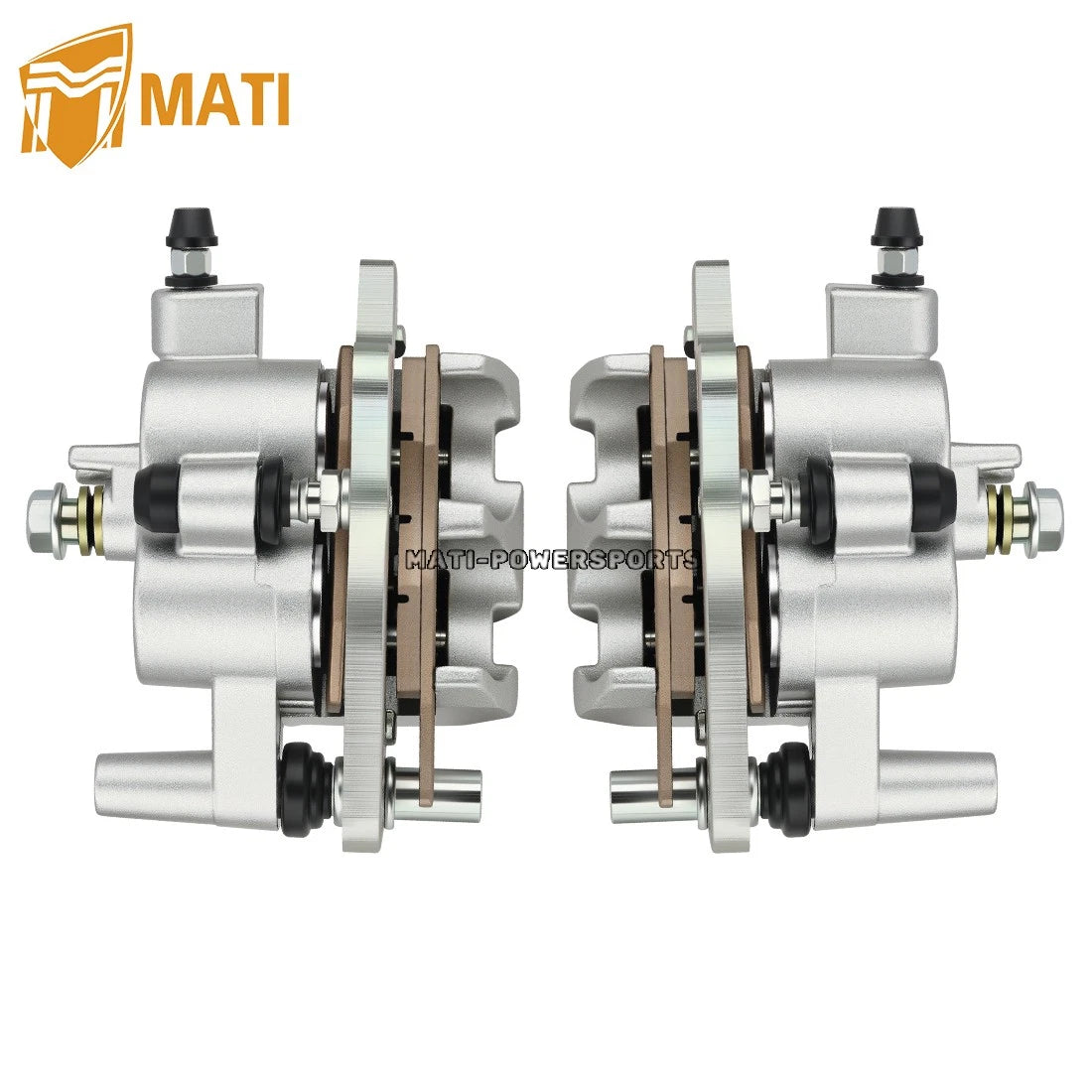

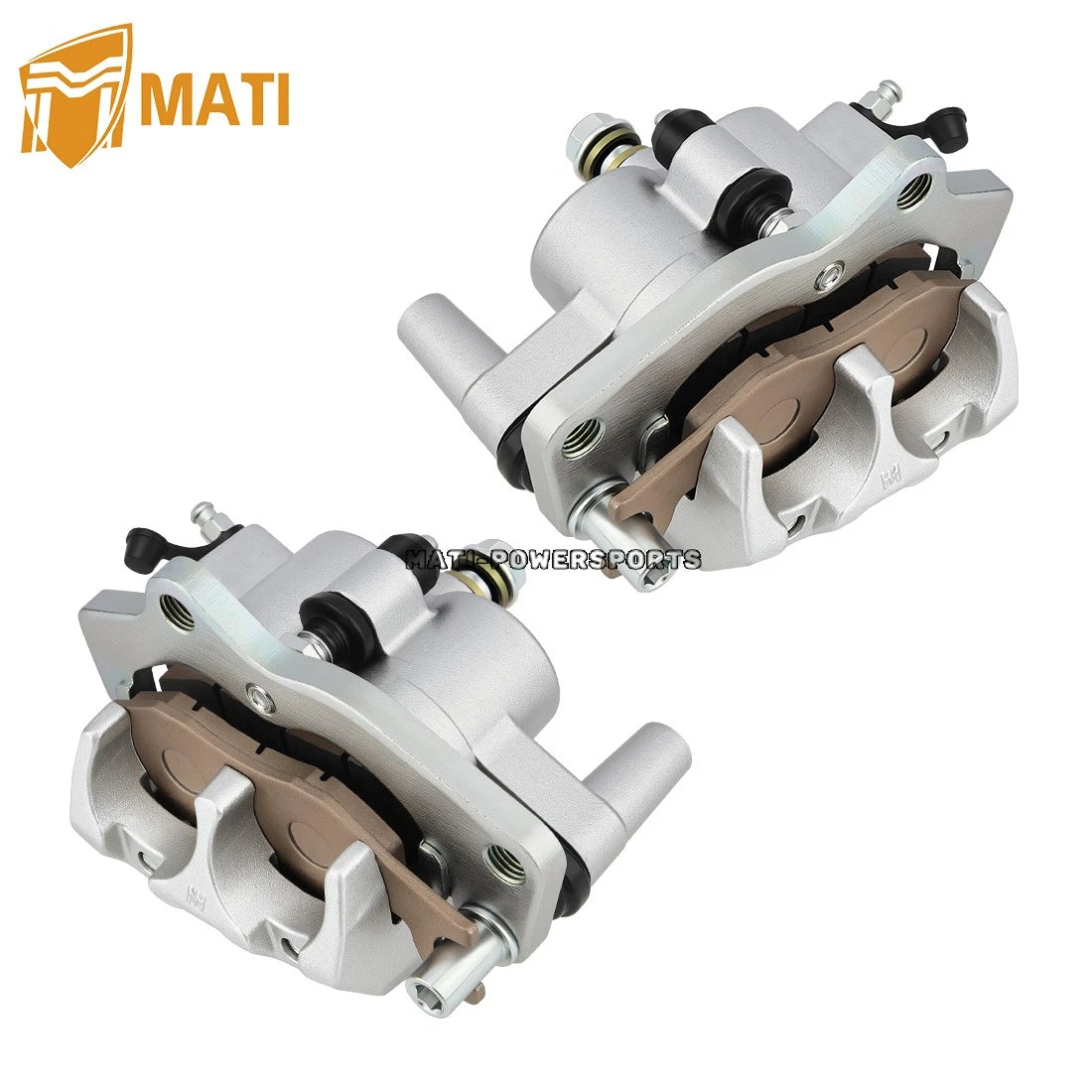

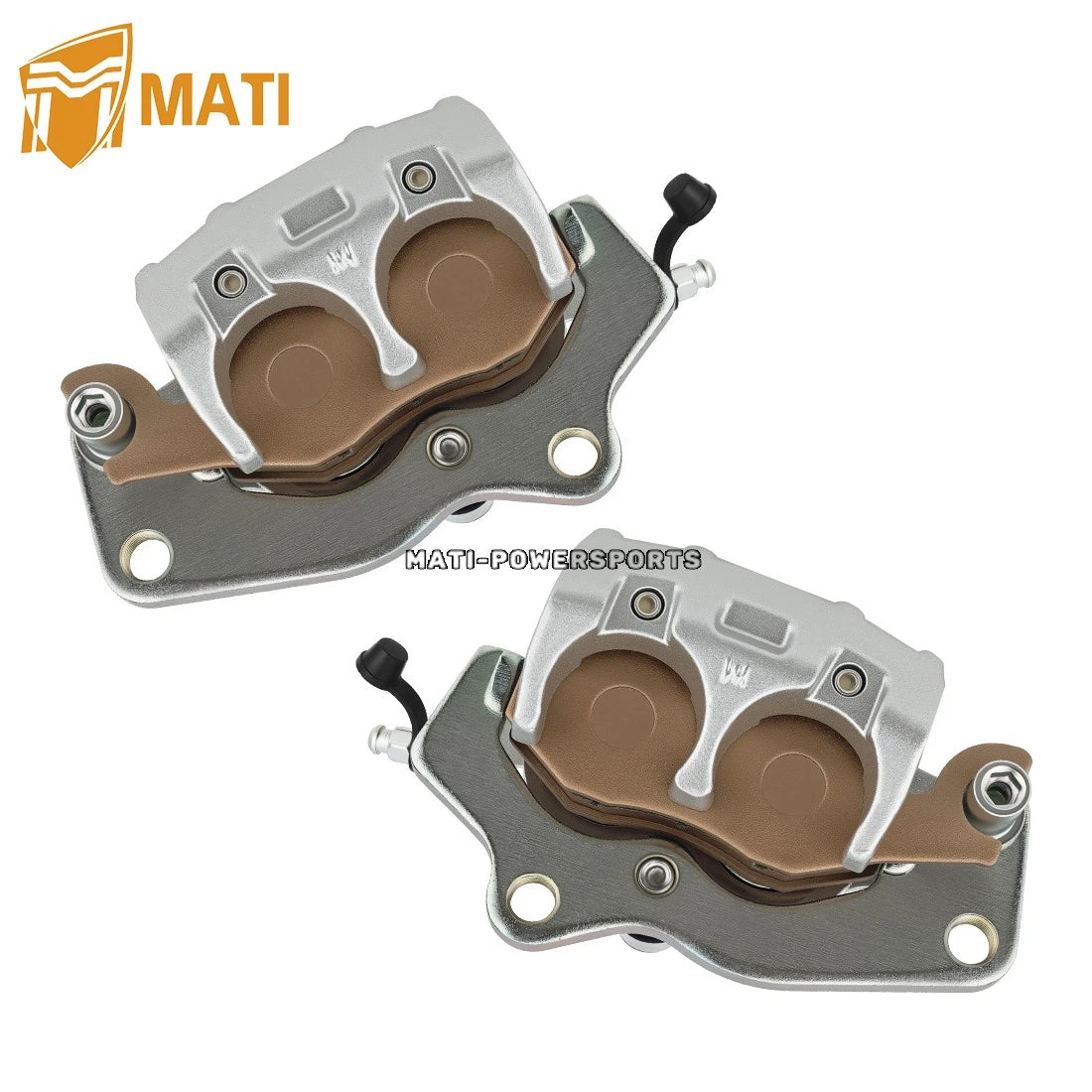

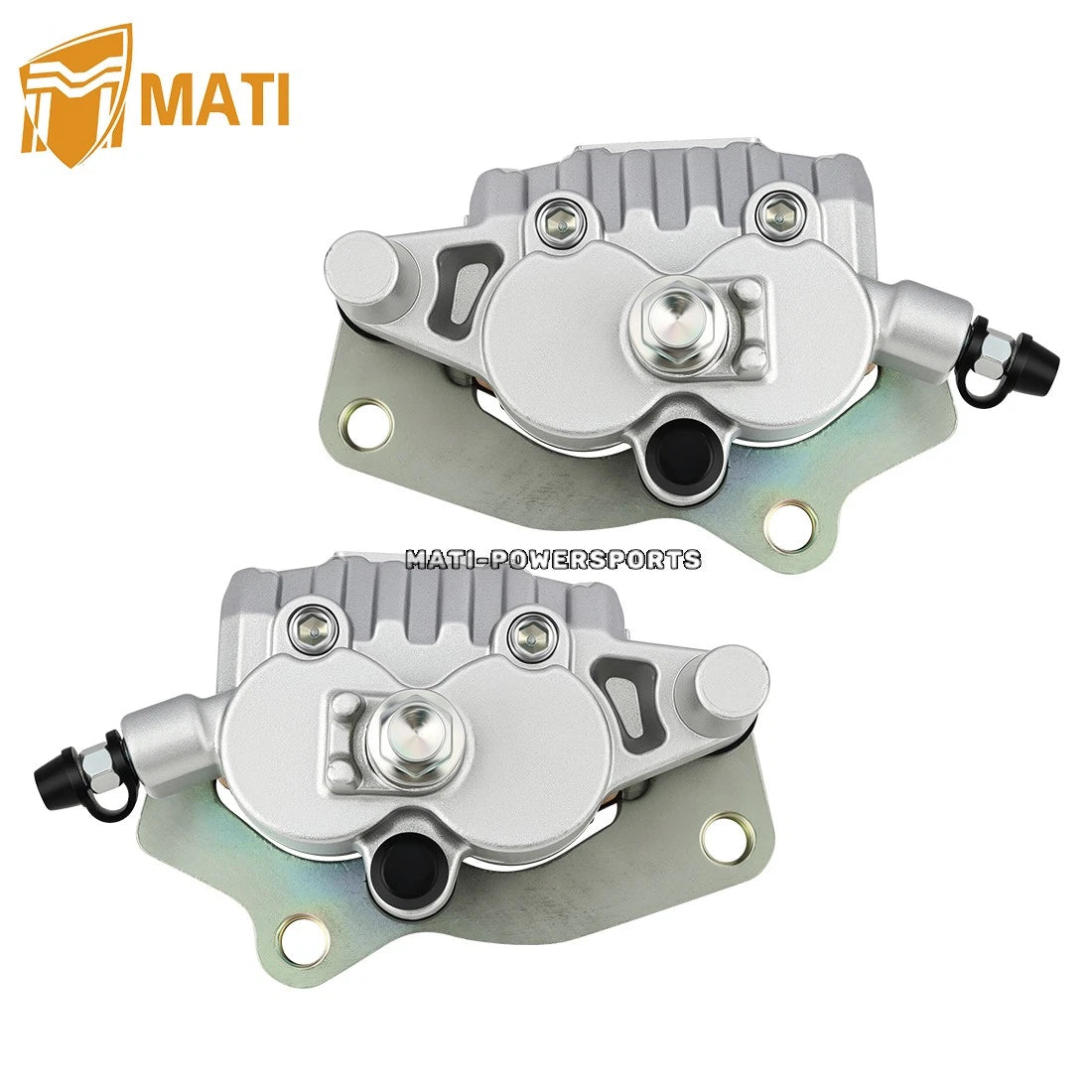

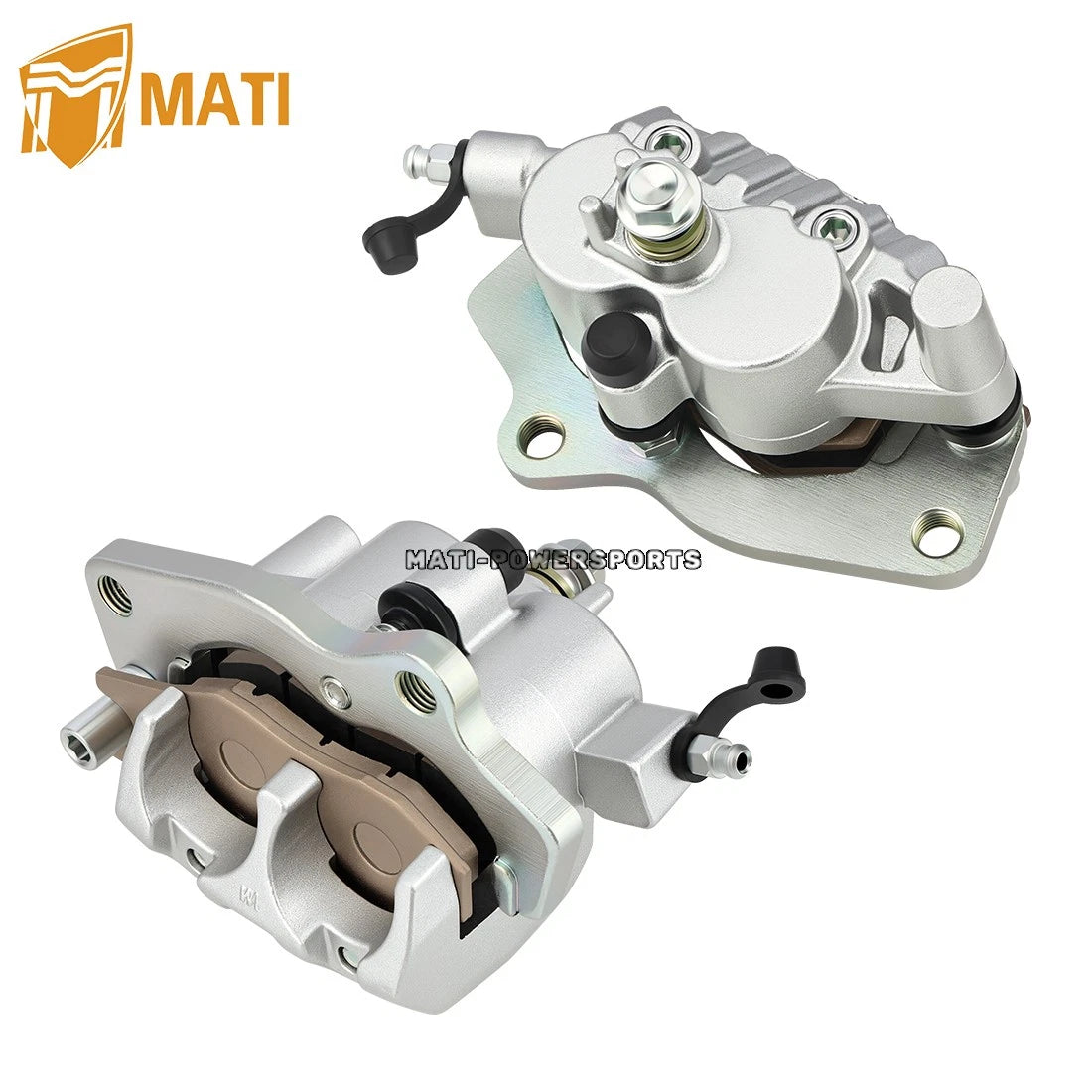

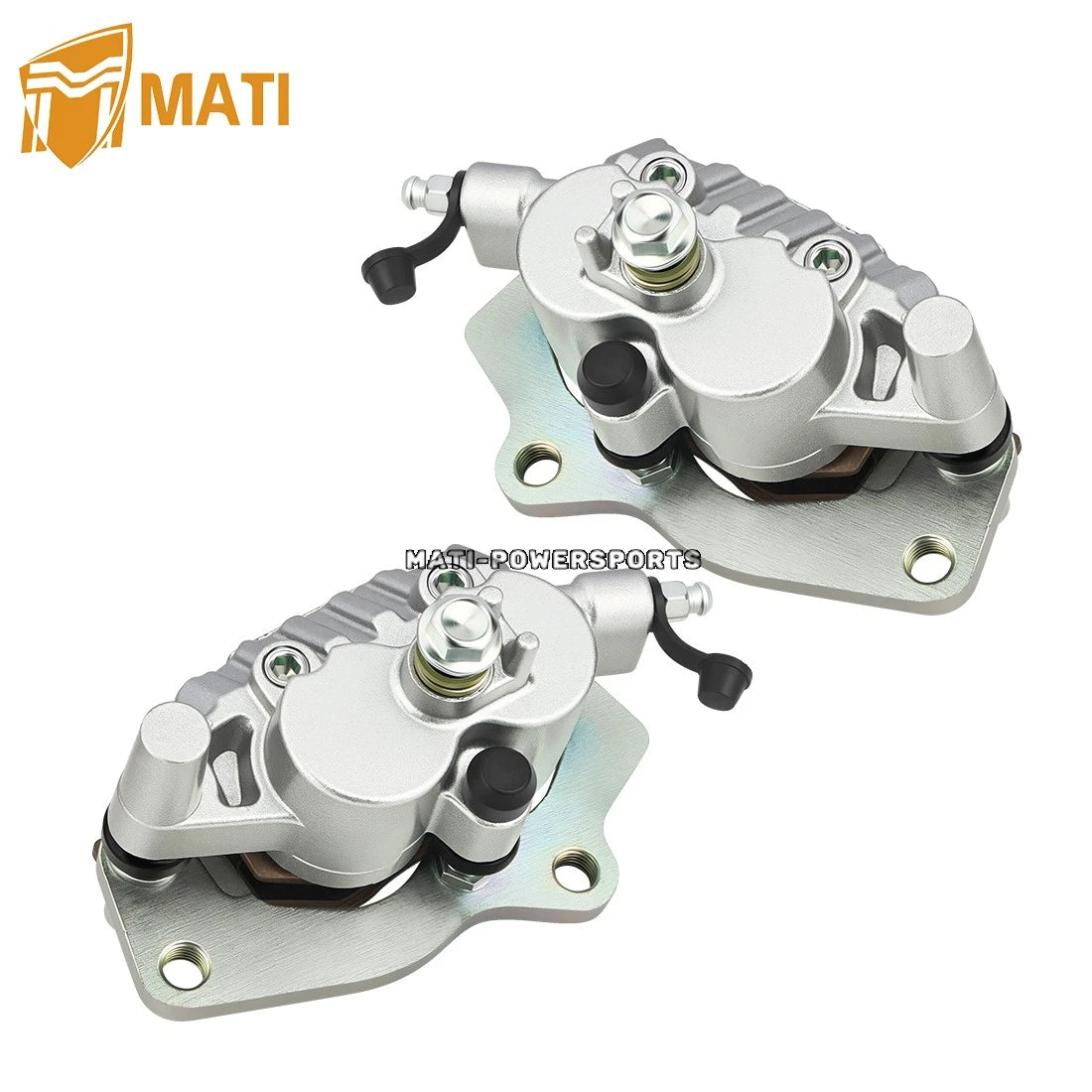

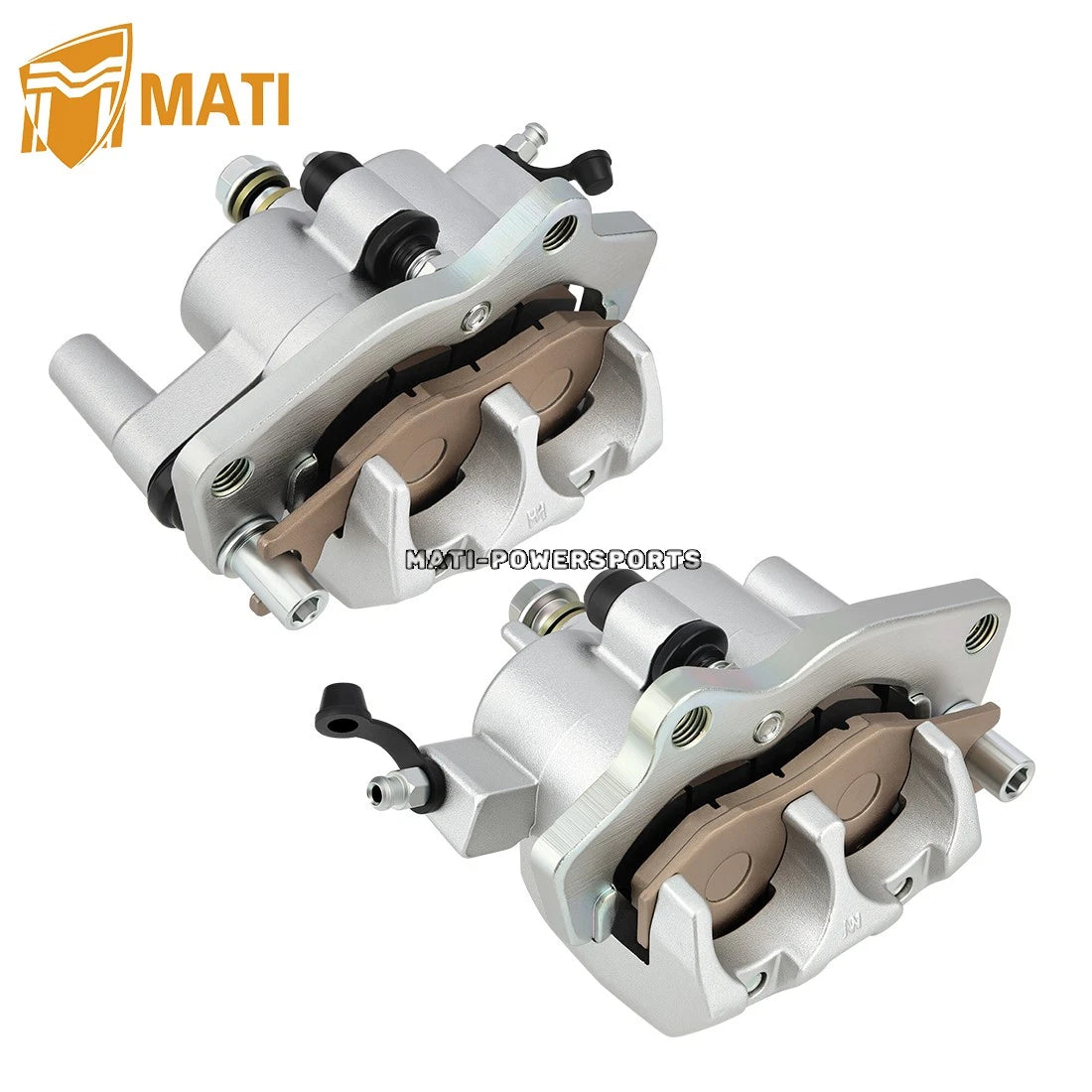

Front Left & Right Brake Calipers Set for Kawasaki Mule PRO-MX KAF700 2019-2024 Replaces 43041-Y012-934 & 43041-Y011-934

Front Left & Right Brake Calipers Set for Kawasaki Mule PRO-MX KAF700 2019-2024 Replaces 43041-Y012-934 & 43041-Y011-934

$269.00
$355.50 $269.00
Sale Sold out
Shipping calculated at checkout.
paypal visa master discover american_express

Brand Name: M MATI

Origin: Mainland China

For ATV Brand/Model:  Kawasaki

Special Features: Front Left & Right Brake Caliper

MPN :  43041-Y012-934 43041-Y011-934

Package :     Front Left Brake Caliper x1   Front Right Brake Caliper x1

Placement on Vehicle：  Front Brake

Warranty : 1 year

Condition:  New

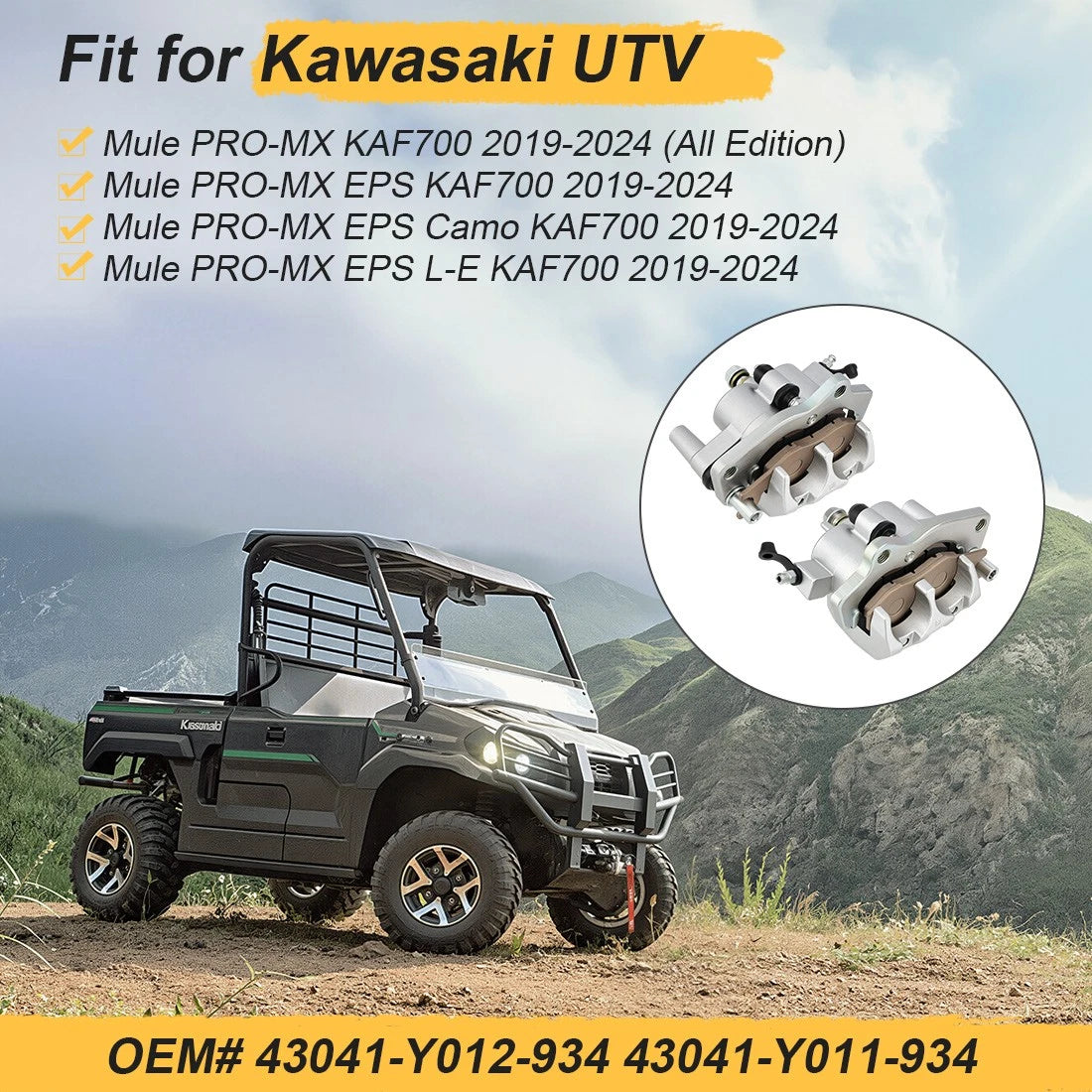

Fit for following  Kawasaki  UTV

Mule PRO-MX KAF700 2019-2024 (All Edition)
Mule PRO-MX EPS KAF700 2019-2024
Mule PRO-MX EPS Camo KAF700 2019-2024
Mule PRO-MX EPS LE KAF700 2019-2024

🛠️ Installation Tips

  • Replace as a Pair: Even if only one side is leaking, we recommend replacing both front calipers simultaneously. Uneven braking pressure between a new and old caliper can cause the steering wheel to pull sharply to one side during an emergency stop.

  • Copper Washers: Always use the new copper crush washers included in the kit for the banjo bolts. Reusing old washers is the #1 cause of slow fluid leaks and "spongy" pedal feel.

  • Slide Pin Lubrication: While these come pre-assembled, it is a pro tip to apply a small amount of high-temp silicone brake grease to the slide pins. This ensures the "floating" caliper moves freely, preventing uneven pad wear.

  • Bleeding Sequence: On the Mule PRO-MX, start bleeding at the caliper furthest from the master cylinder (usually the Front Right) and then move to the Front Left. Continue until the fluid is clear and free of air bubbles.

  • Bedding the Pads: After installation, perform several slow-speed stops (approx. 10–15 mph) to properly "seat" the new brake pads to your rotors. This prevents glazing and ensures maximum friction.



🔍 Troubleshooting Guide

Issue Possible Cause Solution
Pulling to One Side Air in one line or stuck piston. Re-bleed the side that is not pulling. If it pulls left, the right caliper is likely not engaging fully.
Squealing After Install Vibration or un-greased pins. Ensure the anti-rattle clips are seated correctly. Apply brake quiet paste to the back of the pads (never the friction side).
Spongy Brake Pedal Air trapped in the system. Perform a full system bleed. Ensure the master cylinder reservoir never drops below the "Low" line during the process.
Brakes Dragging/Heat Seized slide pins or collapsed hose. Verify the caliper slides back and forth easily. If the caliper is new but the brakes stay "on," your rubber brake hose may be collapsed internally.
Low Brake Fluid Warning Leak at the banjo bolt. Check the copper washers. Ensure the banjo bolt is torqued to spec; over-tightening can crack the bolt, while under-tightening causes leaks.
