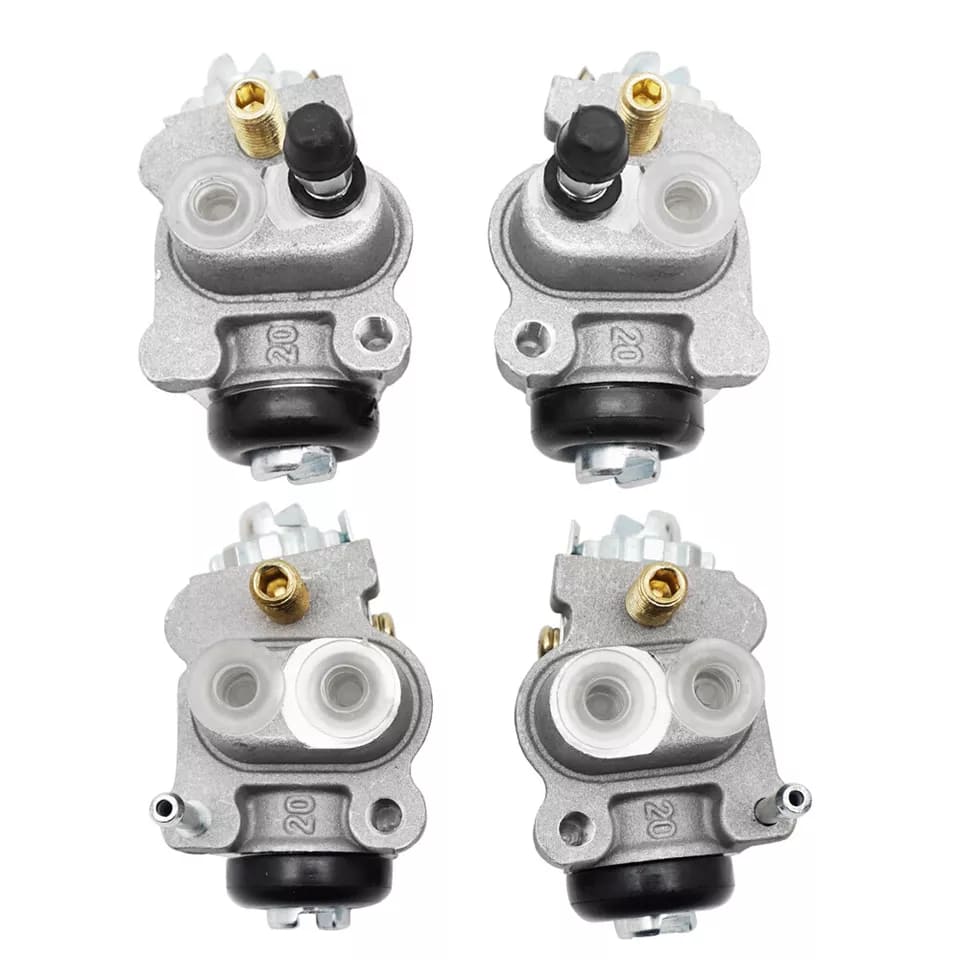

All 4 Front Left & Right Brake Wheel Cylinders For Honda Rancher 350 Foreman 400 450 500 Rubicon 500 2001 -2007 45330-HN2-006

$71.99

Sale Sold out

Shipping calculated at checkout.

Default Title Default Title

SPECIFICATIONS

Brand Name: M MATI

Origin: Mainland China

Item Weight: 0.85 KG

For ATV Brand/Model: Polaris

Special Features: Front Left & Right Brake Wheel Cylinders Set all 4

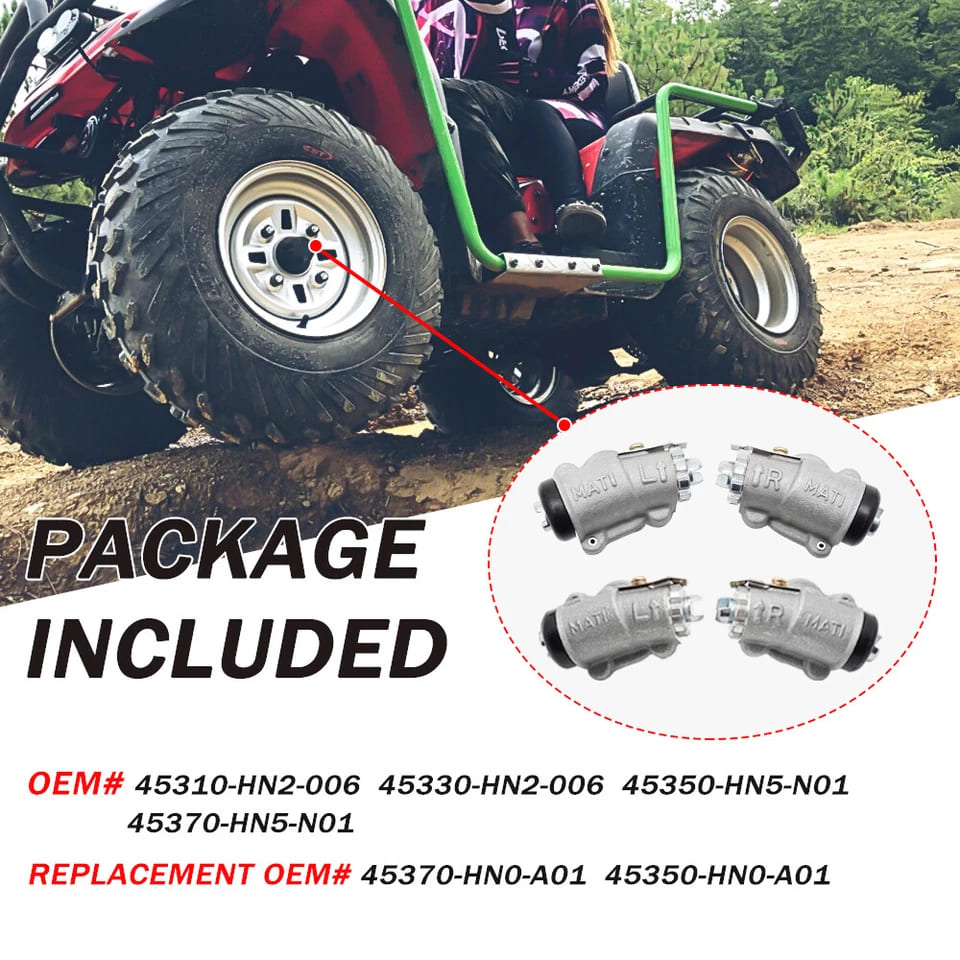

Manufacturer Part # 45310-HN2-006 45330-HN2-006 45350-HN5-N01 45370-HN5-N01

Replacement Part # 45370-HN0-A01 45350-HN0-A01

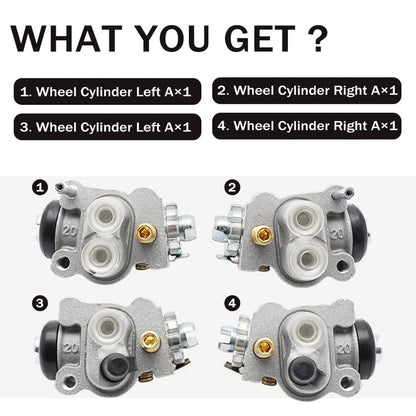

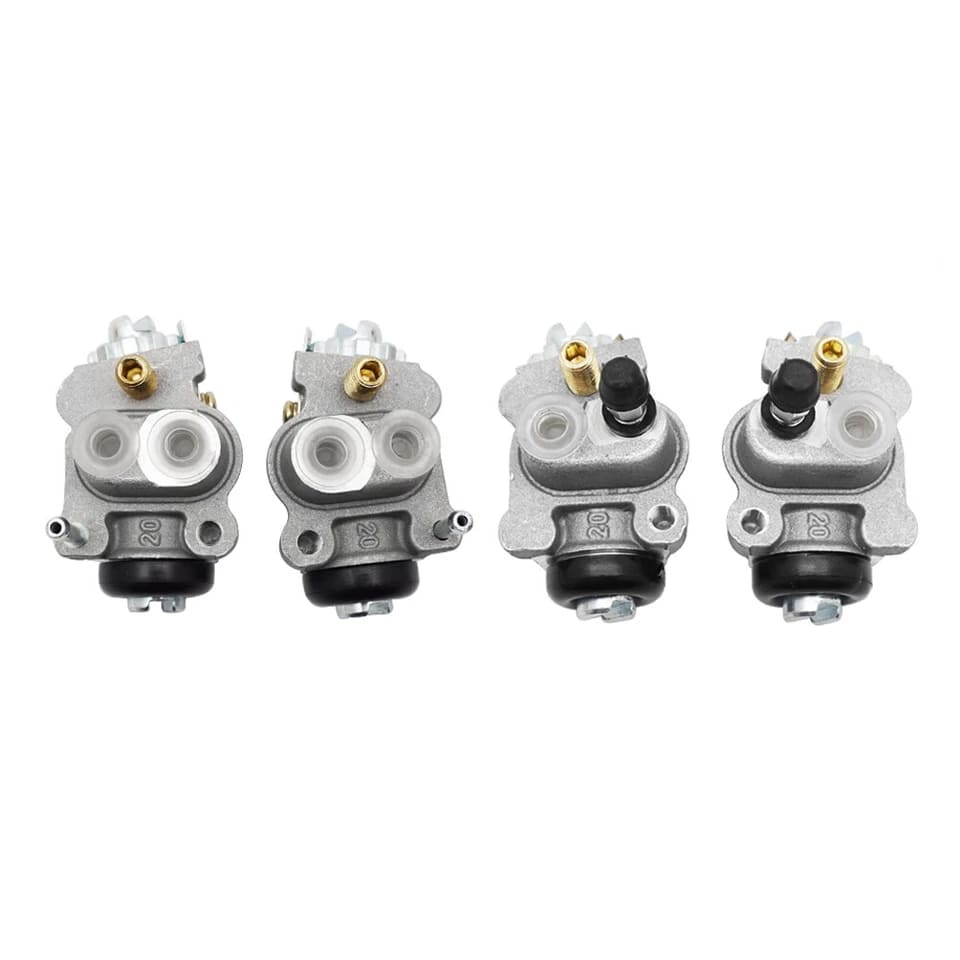

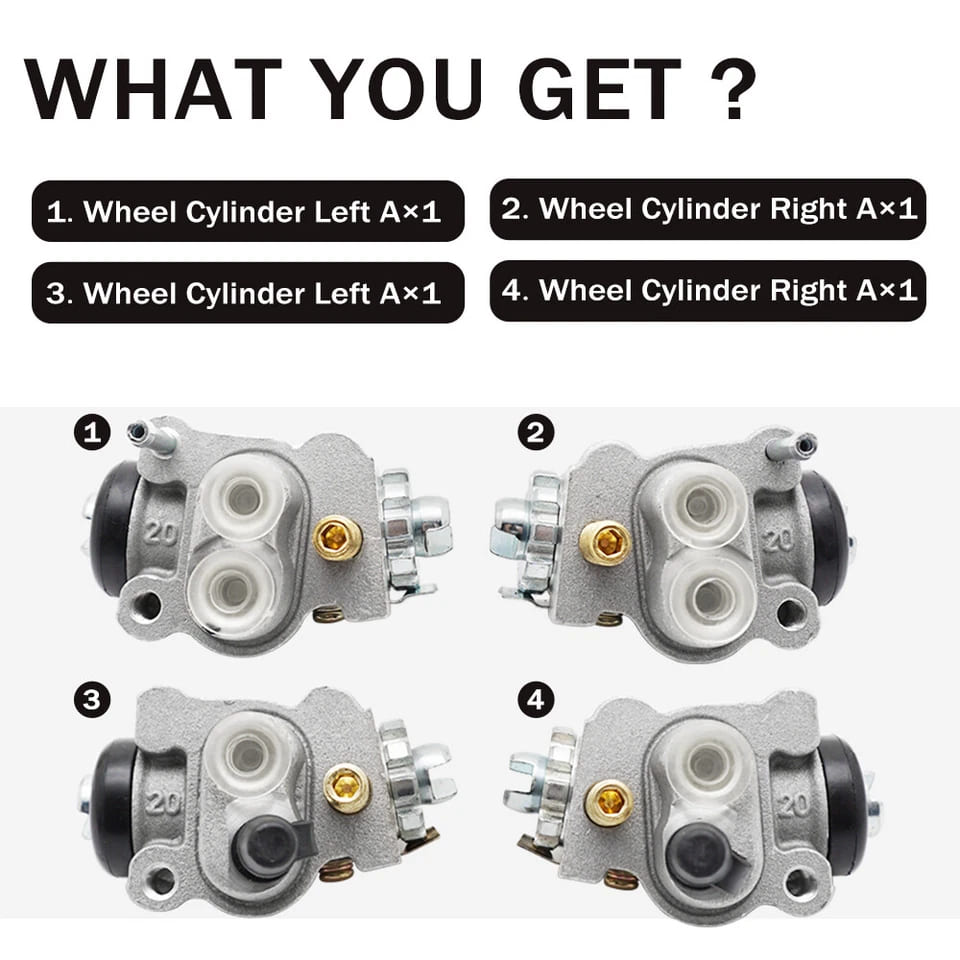

Package Include:

Wheel Cylinder Left A×1

Wheel Cylinder Left B×1

Wheel Cylinder Right A×1

Wheel Cylinder Right B×1

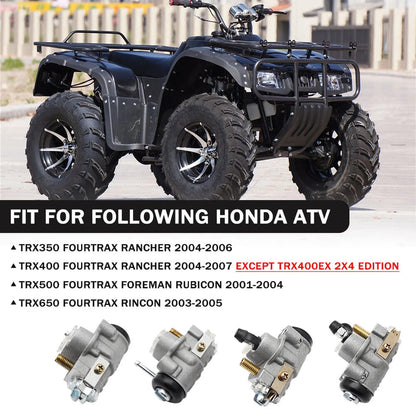

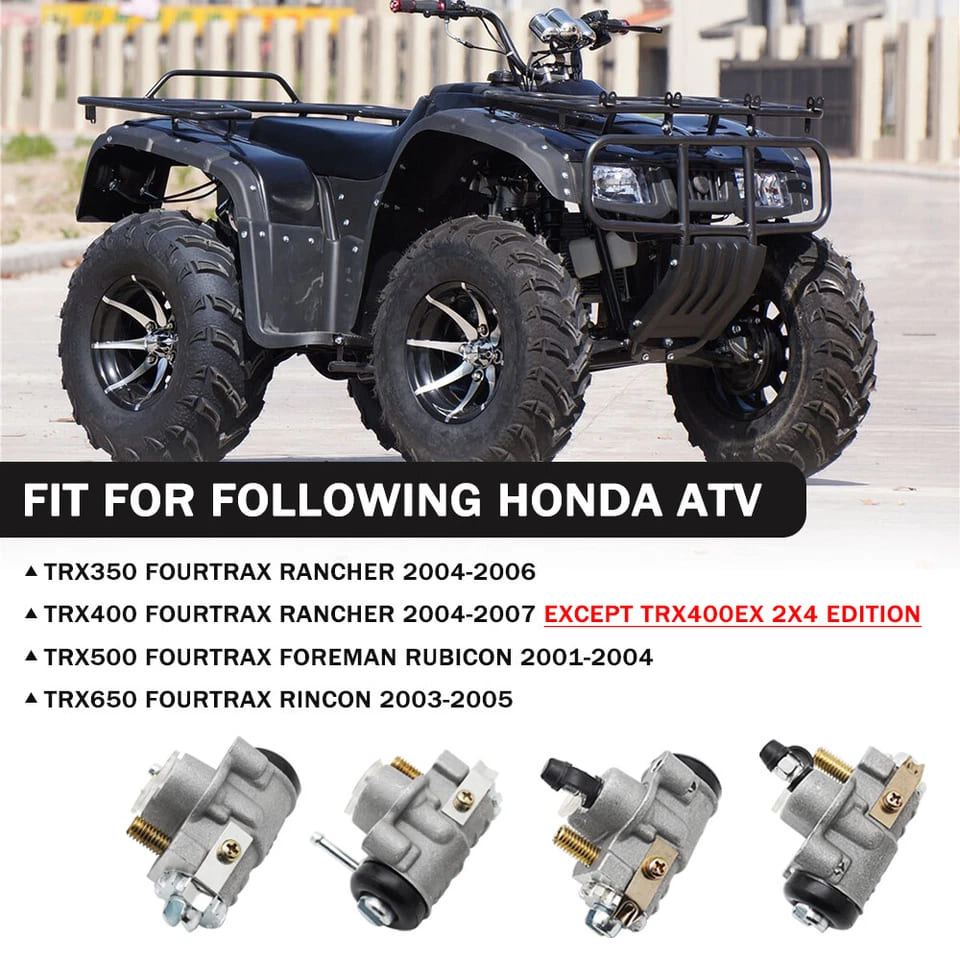

Fit for Honda ATV as follows:

▶TRX350 Fourtrax Rancher 2004-2006

▶TRX400 Fourtrax Rancher 2004-2007 Except TRX400EX 2x4 Edition

▶TRX500 Fourtrax Foreman Rubicon 2001-2004

▶TRX650 Fourtrax Rincon 2003-2005

Replace in Sets of Four: These Honda models use two cylinders per wheel. Replacing only one or two will lead to uneven braking pressure. Always replace all four to ensure the ATV tracks straight under heavy braking.
Flare Nut Wrench: Use a dedicated flare nut wrench to loosen the brake lines. The fittings are often rusted; using a standard open-end wrench will likely round off the nut, requiring a difficult line replacement.
Bleeding the System: Start with the lower cylinder first, then move to the upper one on each wheel. Because the lines are long, air bubbles often get trapped. Using a vacuum bleeder is highly recommended for these specific models.
Clean the Backing Plate: While the cylinders are off, clean the brake shoe contact points on the backing plate. Apply a tiny amount of high-temp brake grease to these spots to prevent the shoes from "hanging up."
Copper Washers: Always use new copper crush washers for the banjo bolts. Reusing old, hardened washers is the most common cause of slow fluid leaks after installation.

Issue	Possible Cause	Solution
Spongy Brake Lever	Air still trapped in the cylinders.	Re-bleed the system. Try "pumping" the lever quickly and then holding it while opening the bleeder. Ensure the master cylinder never runs dry.
ATV Pulls to One Side	Uneven cylinder extension.	One of the new cylinders may have air, or the opposite side is not working. Check that all 4 pistons move outward when the lever is squeezed.
Brake Fluid Leak at Boot	Damaged internal seal.	If fluid is leaking from the rubber dust boot, the internal seal is compromised. Check for debris on the brake line fitting or replace the unit.
Brakes Dragging	Stuck piston or weak return springs.	Verify the cylinders retract fully when the lever is released. If not, check if the brake shoe return springs are stretched or installed incorrectly.
No Brake Pressure	Failing Master Cylinder.	If all 4 cylinders are new and bled correctly but there is still no pressure, the internal seals of the handle-bar master cylinder are likely worn out.
